Blum SERVO-DRIVE Flex for Fridge Freezers and Dishwashers Set

Description

Blum SERVO-DRIVE Flex for Fridge & Freezers & Dishwashers Set

SERVO-DRIVE Flex by Blum is perfect for use with built-in fridge/freezers and dishwashers.
Electrical opening support system for handle-less built-in appliances.
Whether left or right opening, SERVO-DRIVE flex can be used with most built-in refrigerators, freezers and dishwashers.
Delivers the convenience of handle-less opening expected from SERVO-DRIVE.
No qualified electrician is required as the system is a plug & play module.

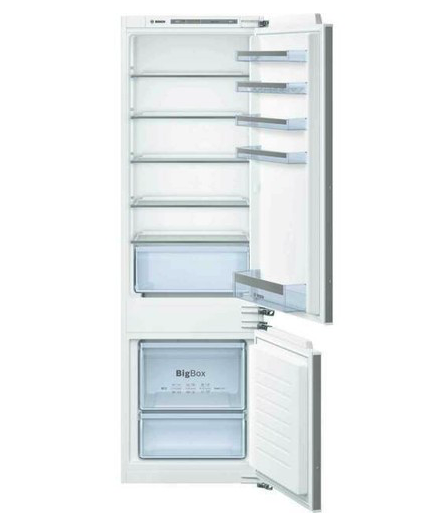

Combination fridge freezers – The doors of a combination fridge freezer are fitted with separate SERVO-DRIVE flex units so they can be opened individually

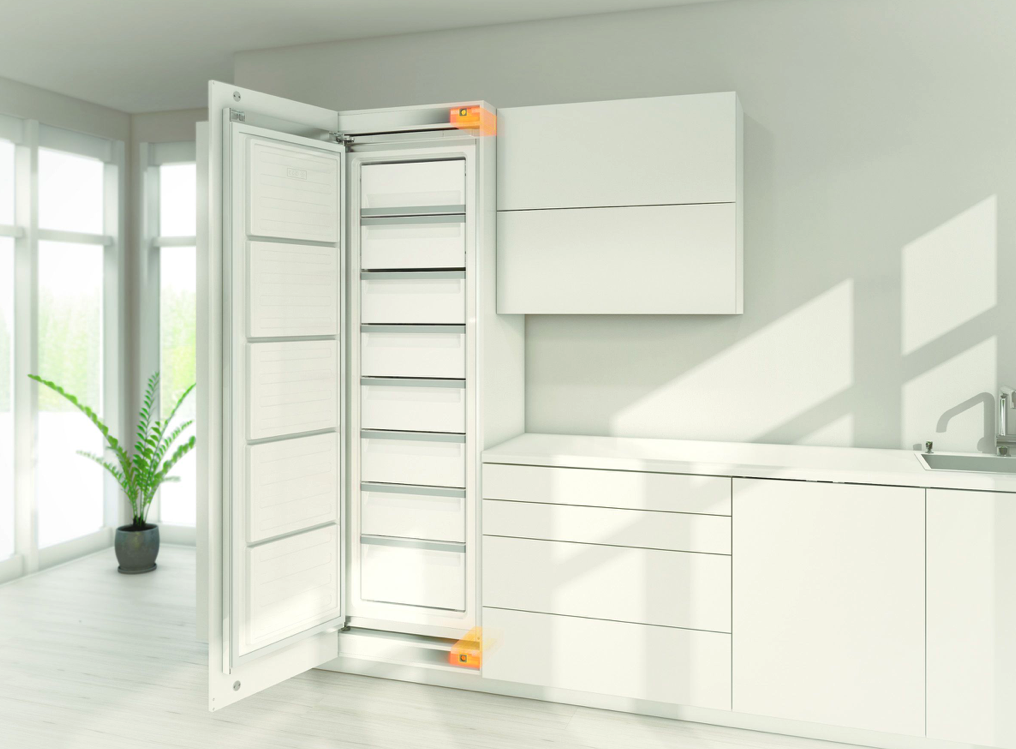

Freezers – For large and heavy doors, e.g. freezer doors, reliable opening is achieved with two synchronised drive units.

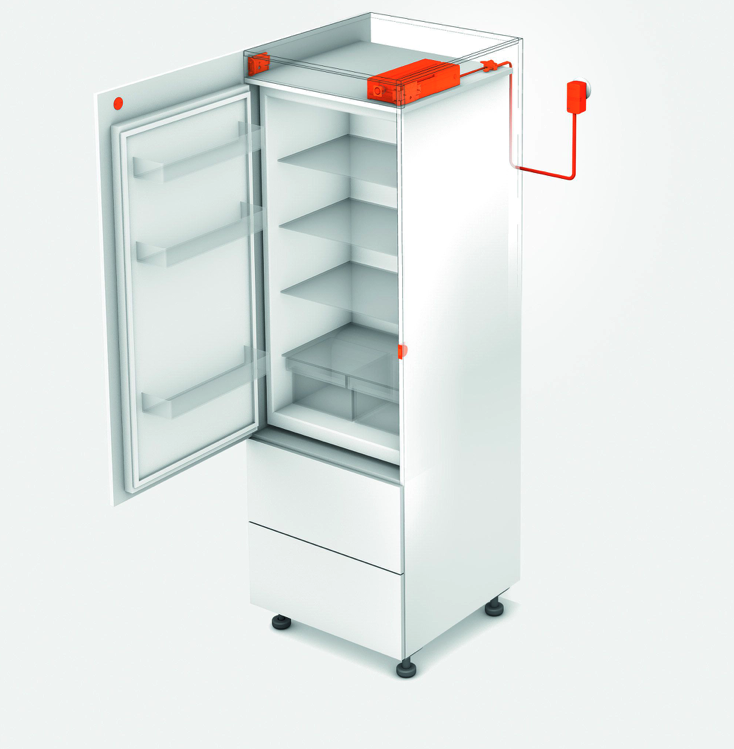

Refrigerators – An optional wireless switch can be used to enlarge the trigger range for the fronts of refrigerators.
The door will always open with ease no matter where you touch the front.
Dishwashers – If SERVO-DRIVE flex is used with built-in dishwashers, the drive unit is mounted in the centre of the installation recess.

Each set includes as below:

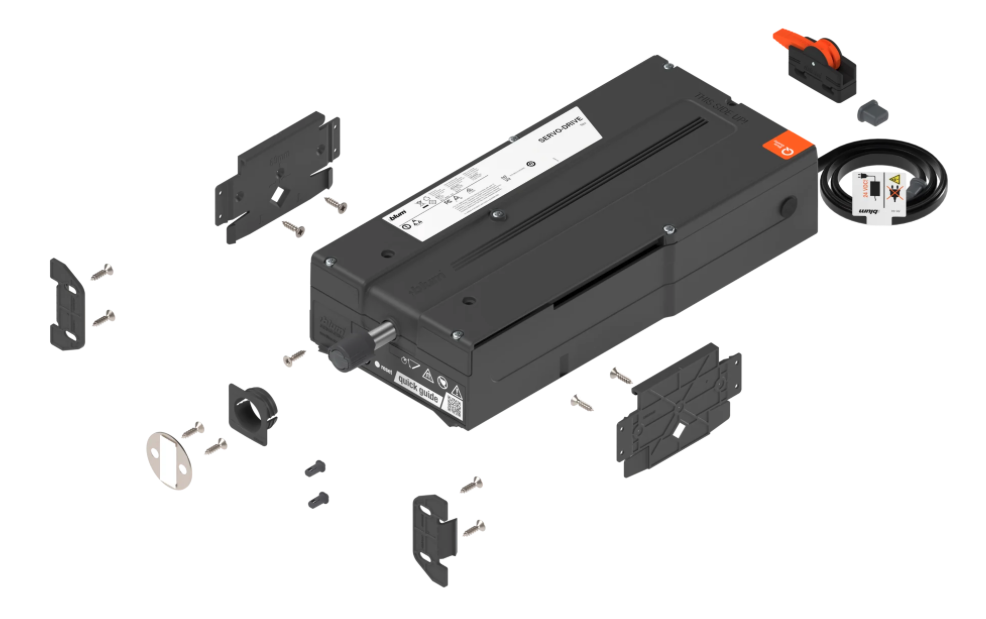

SD-D – 1 x Drive units Z10C500A, 1 x Mounting plate for dishwasher Z10C5005

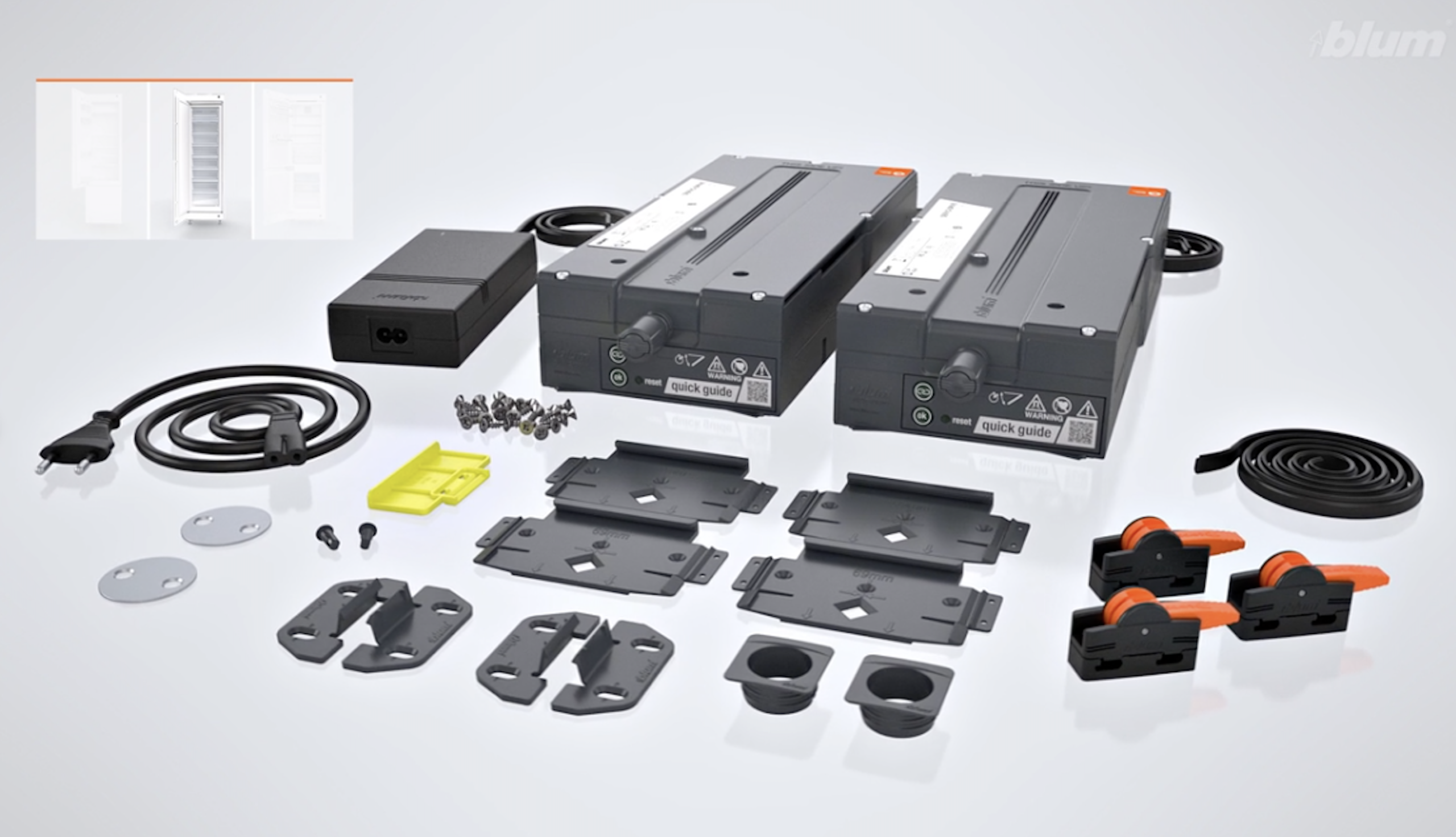

SD-FFL – 2 x Drive units Z10C500A, 1 x 3000mm synchro cable Z10K300A, 2 x cable connecting nodes Z10V1006, 1 x wireless switch 23P5020
SD-FFS – 1 x Drive units Z10C500A, 1 x Wireless switch 23P5020, 1 x 3000mm synchro cable Z10K300A, 2 x Cable connecting nodes Z10V1006
SD-FFED – 2 x Drive units Z10C500A,2 x Wireless switches 23P5020, 1 x 3000mm synchro cable Z10K300A, 2 x Cable connecting nodes Z10V1006
SD-FFUD – 2 x Drive units Z10C500A,1 x Wireless switch 23P5020, 1 x 3000mm synchro cable Z10K300A, 2 x Cable connecting nodes Z10V1006

A driver Z10NA40BA is NOT included in pack-need to be purchased separately

Installation instruction to download
