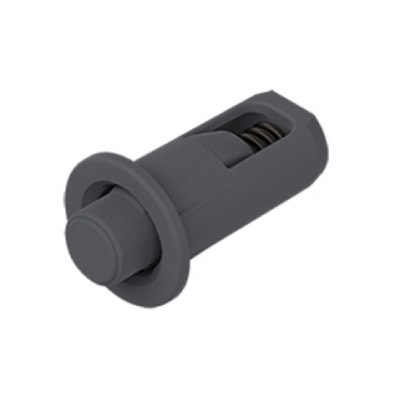

Blum SERVO-DRIVE Distance Bumper
Distance bumper is used to create the necessary 2.6mm frontal/cabinet gap required to trigger the drive unit.
Must be used in combination with Servo-Drive for pull-outs units.
Material: Nylon
Colour / finish: RAL 7037 dust grey
Damping device fixing: Drilling
Shape of buffer: Cylindrical
Overall length (incl. head):
-5mm: Length:10.6mm, Dia: 3.6mm, Drilling: 5mm
-8mm: Length:12.1mm, Dia: 5.5mm, Drilling: 8mm
Head shape: Cheese head
Fixing Method: Push Fit

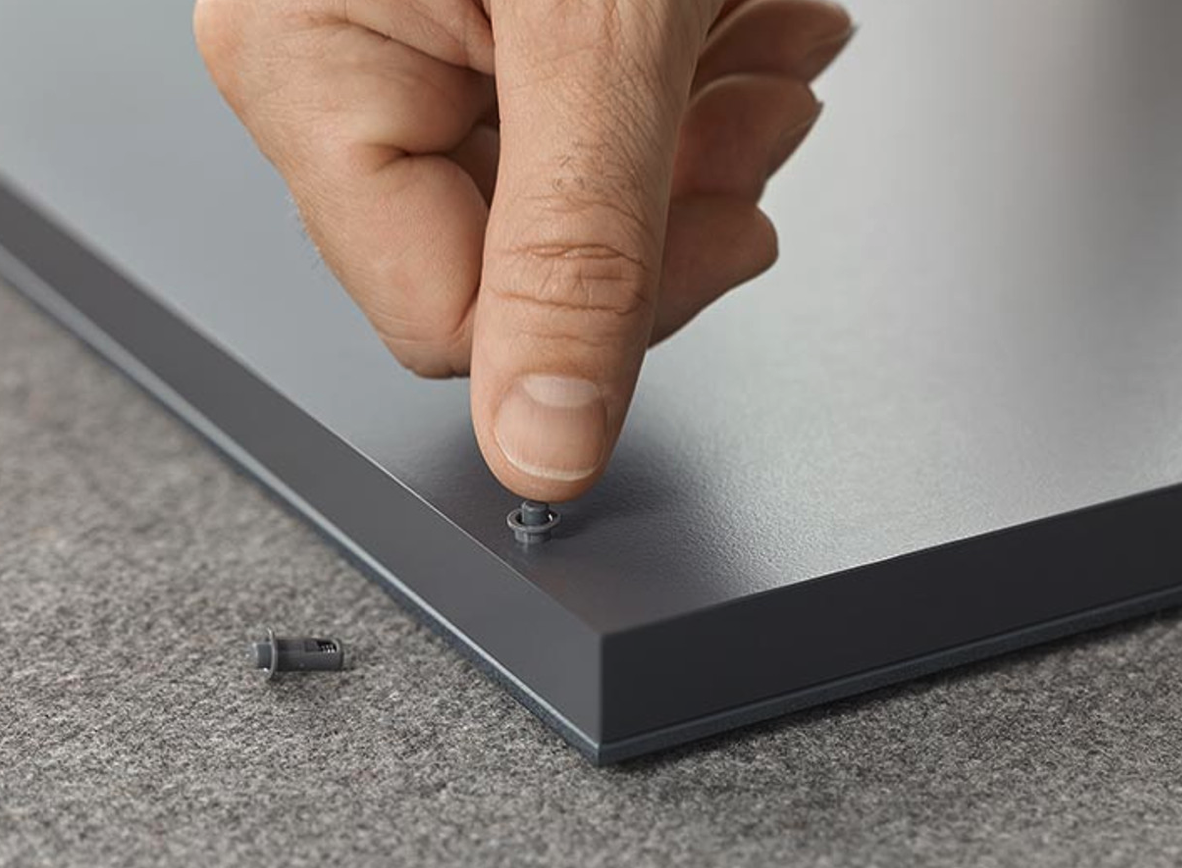

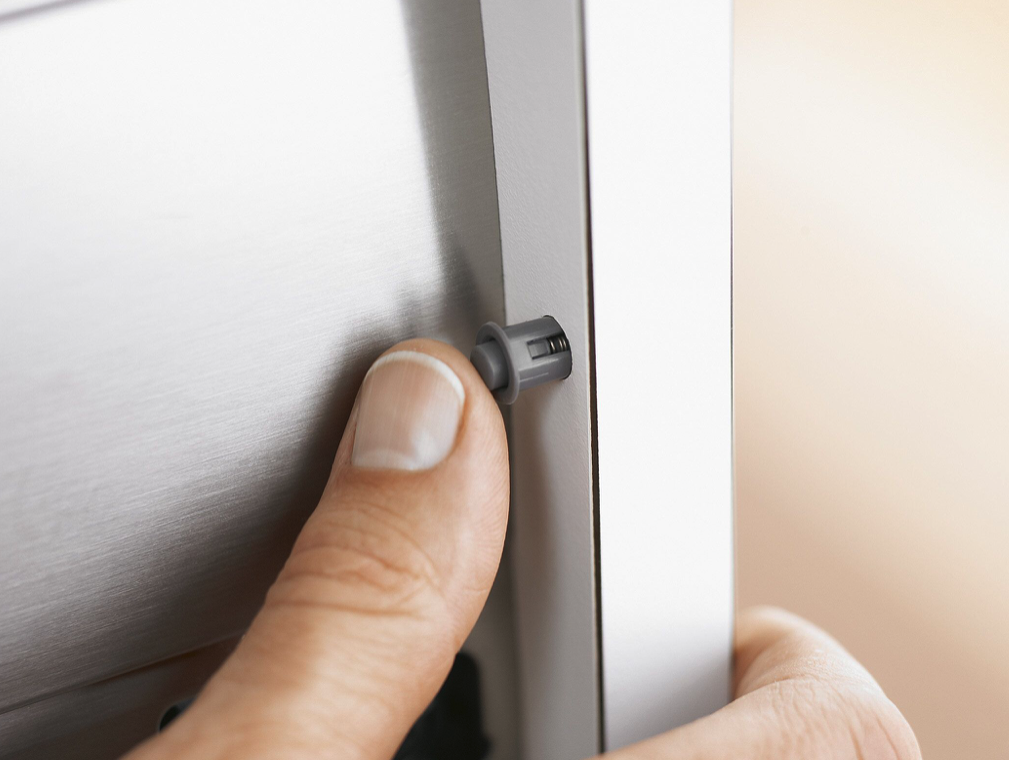

Installation: the distance bumper is inserted into a Ø5mm/8mm hole.
| Weight | 0.1 kg |
|---|---|
| Diameter | 5mm, 8mm |
