Price range: £3.94 through £4.84 excl. VAT
20 in stock
17 in stock
20 in stock
Led Dimmer Touch Switch for Inside COB Led Profile

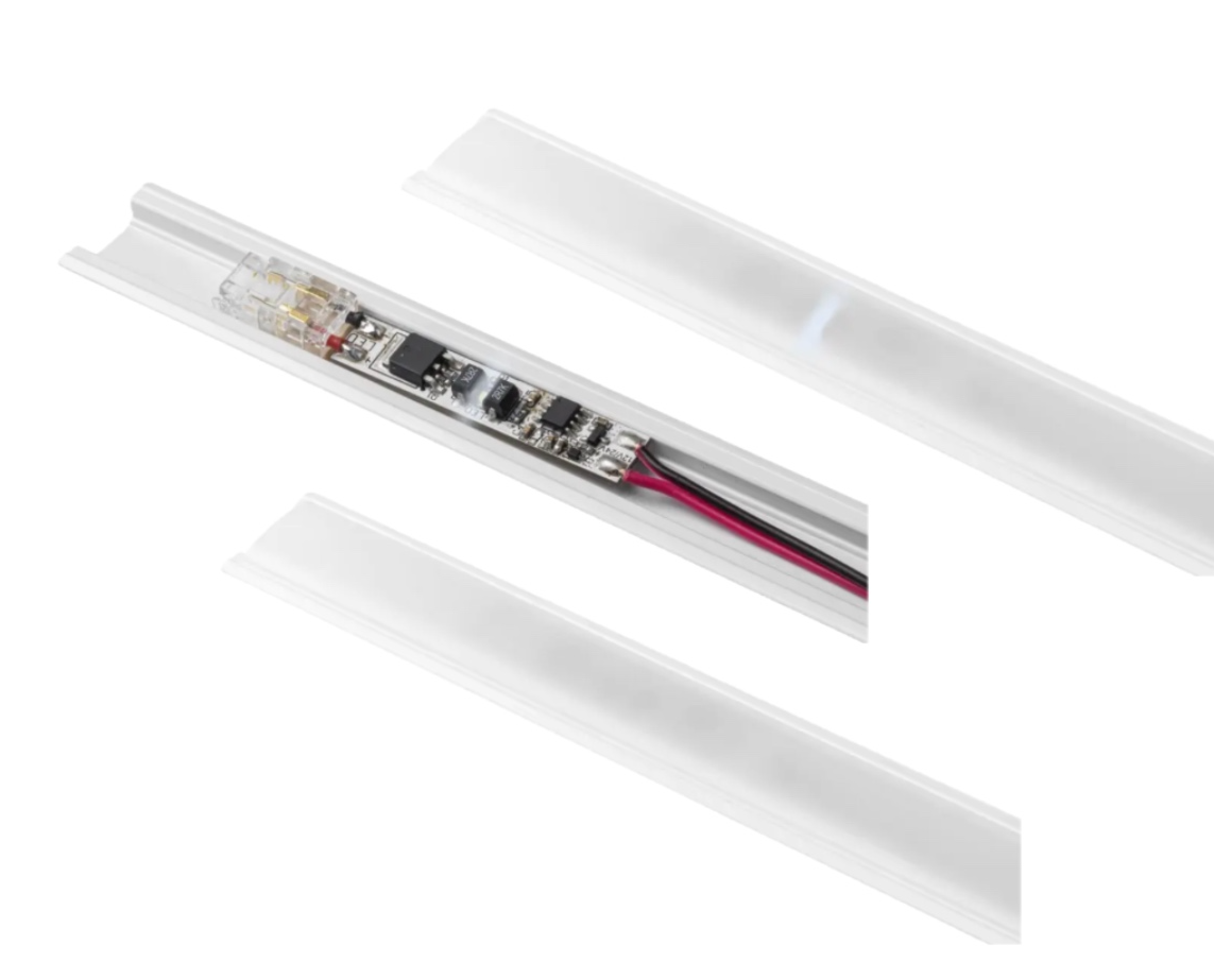

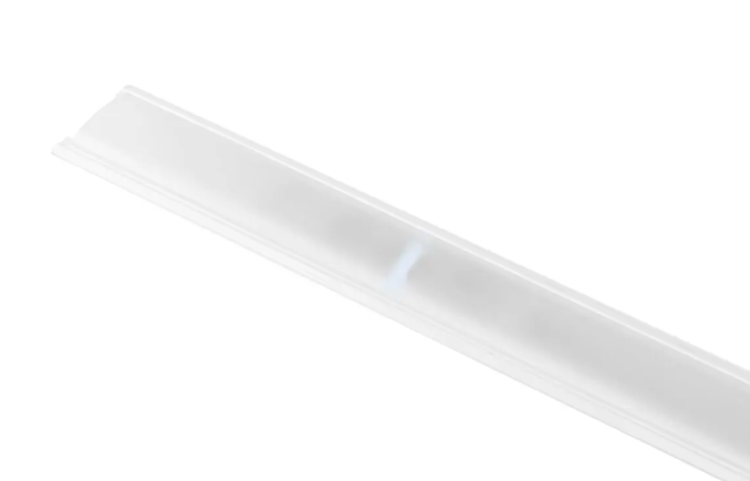

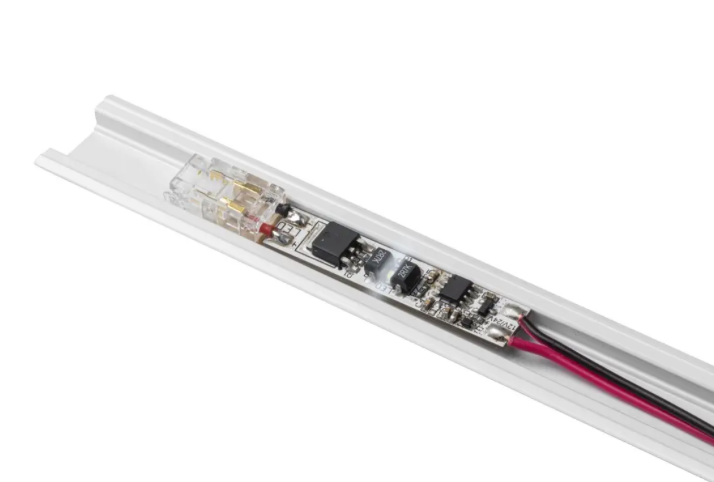

The switch is designed for mounting inside the LED profile.

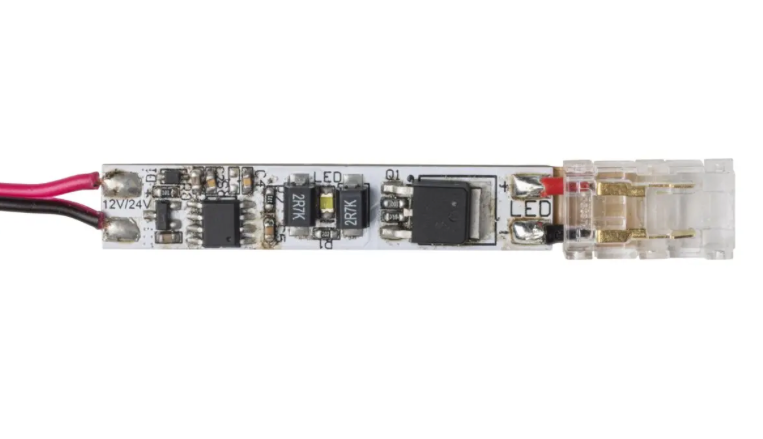

On one side, it is terminated with a COB connector, which allows quick installation of the COB tape to the switch.
It supports strip sections of no more than 60W for 12V and 120V for 24V.
It has a dimming function.
The diode indicates when it is ready to operate.
It also makes it easier to find the switch at night.
Suitable for 8mm or 10mm tapes and slim LED profiles
Dimmer Function: dimmable

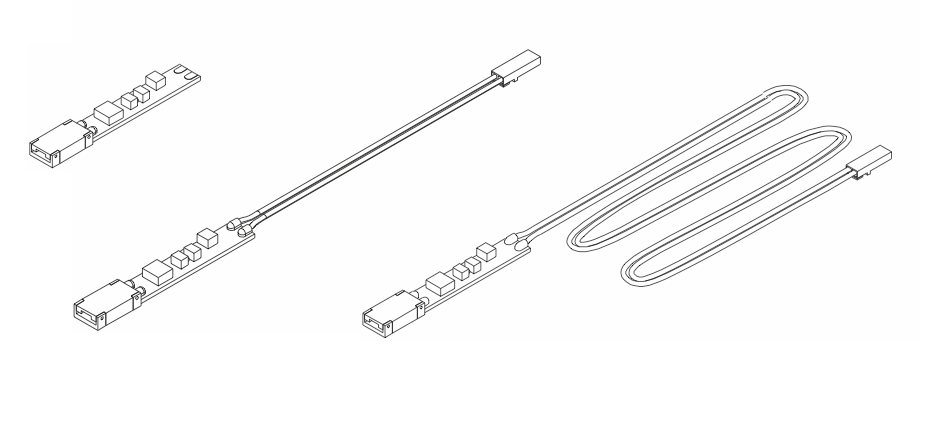

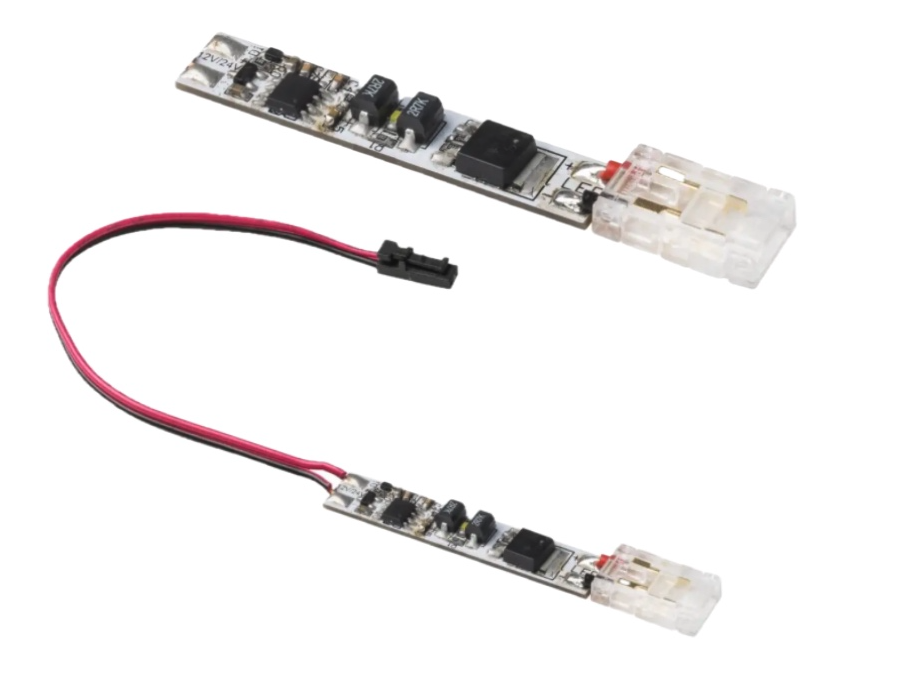

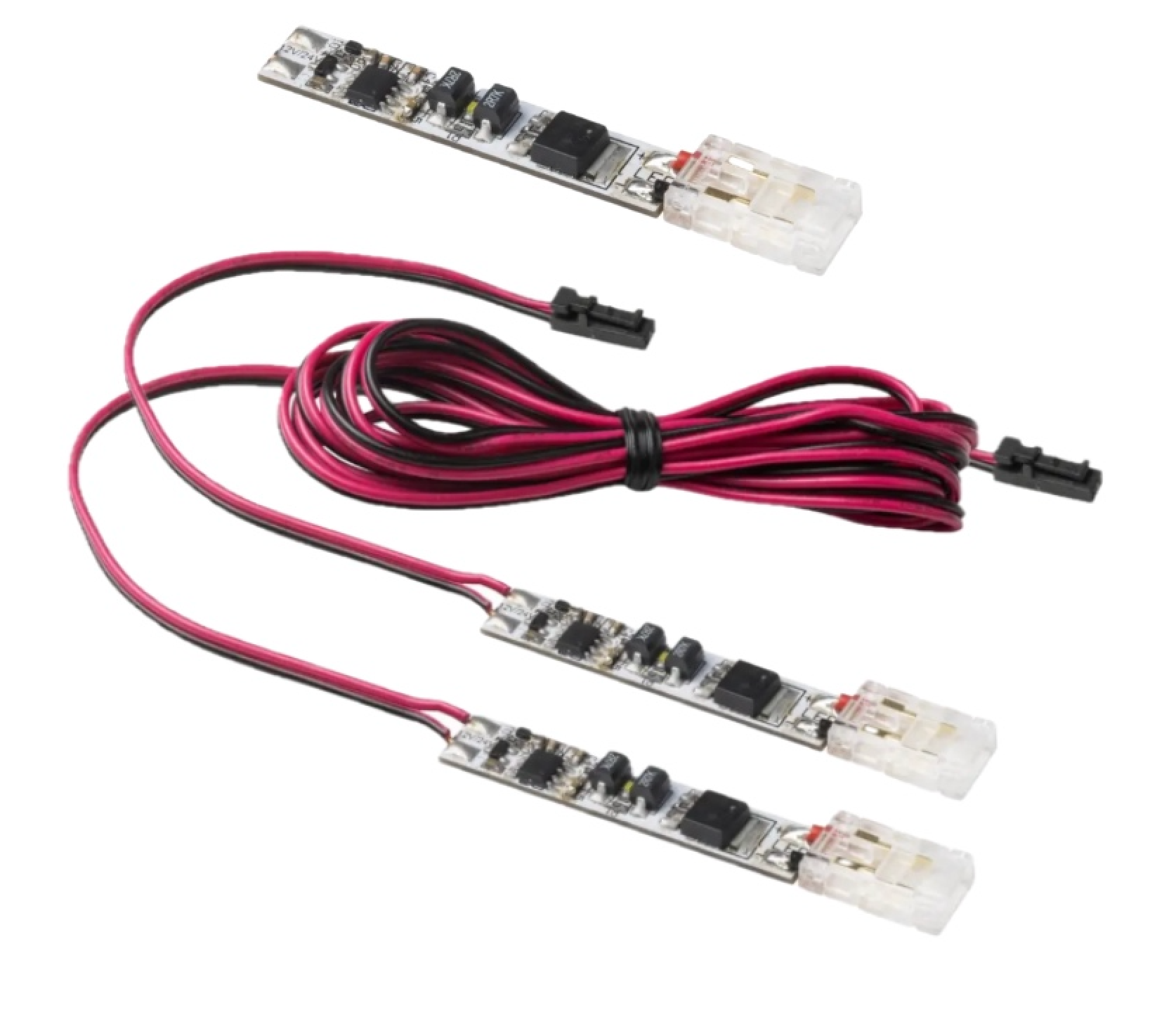

Available in 3 options:

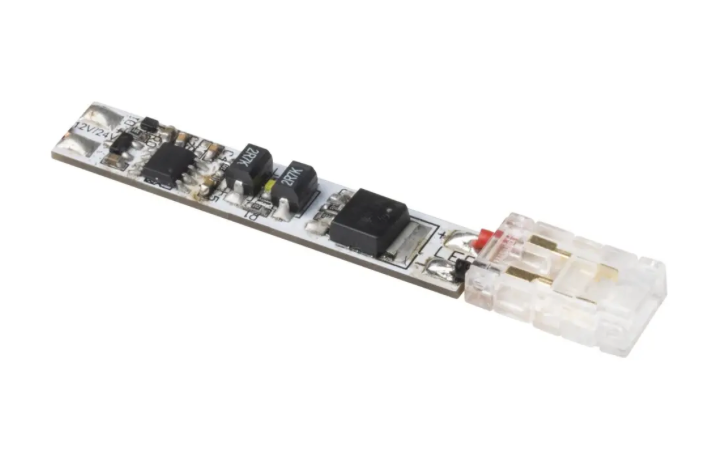

Without cables/Direct: 12V-60W, 24V-120W, 5A

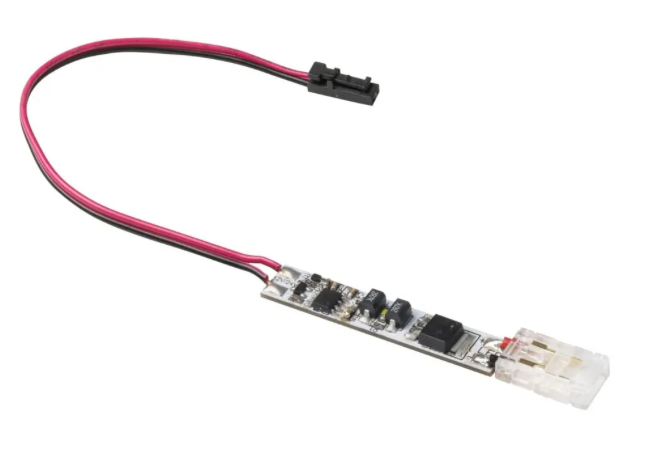

With 15cm cable: 12V-36W, 24V-72W, 3A

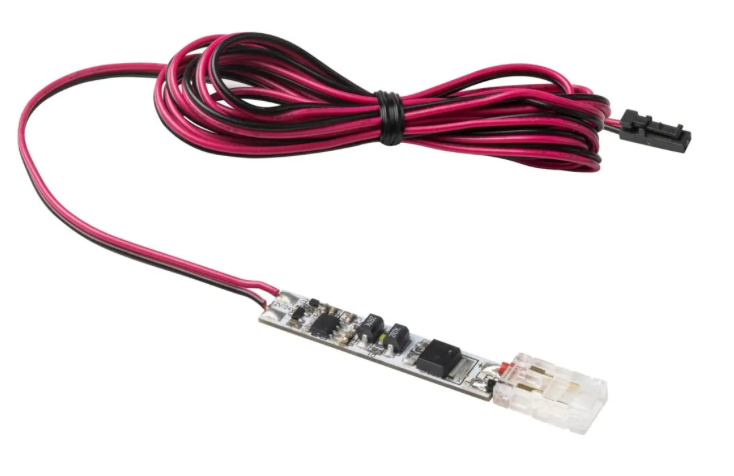

With 2m cable: 12V-32W, 24V-72W, 3A

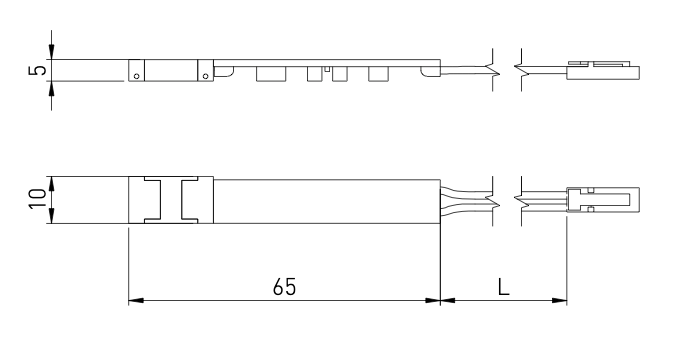

Wide: 10mm
Thickness: 5mm
Length: 65mm plus cable
Fitting: self-sticky tape to the base of the profile
Installation info Touch Switch
Do not connect the switch to live cables.
| Cable Length | Cable 15cm, Cable 2m, Without Cable |
|---|
