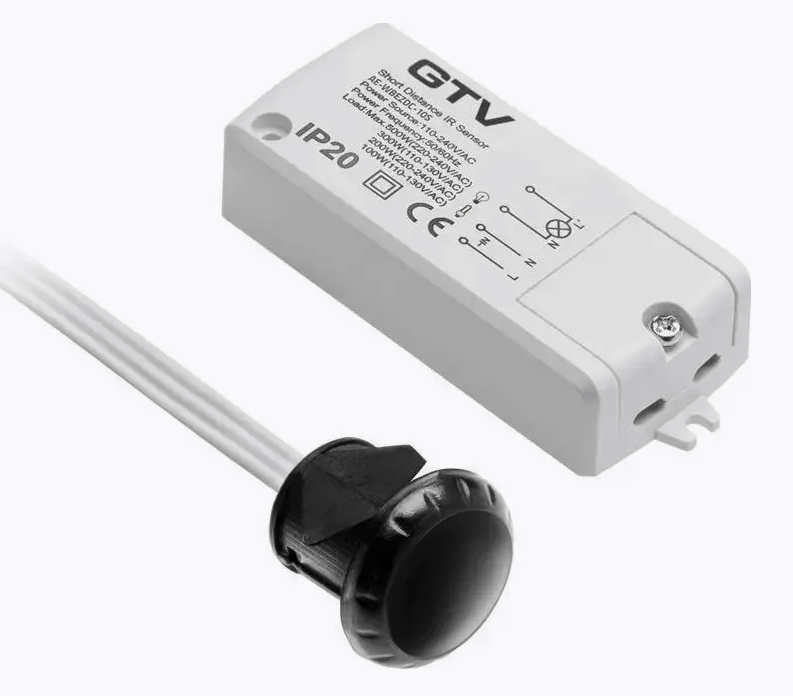

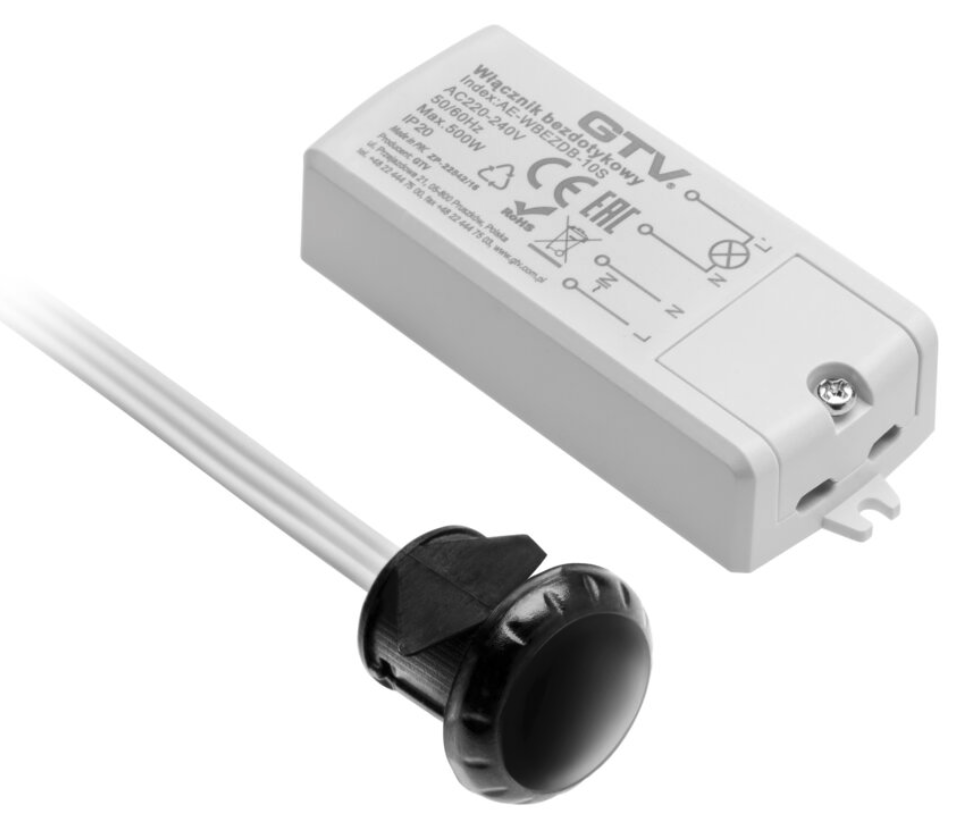

Switch PIR Touchless Door Sensor IR Motion Switch

Description

Switch PIR Touchless Door Sensor Electronic IR Motion Switch

Door Sensor Switch (one way, single pole,  monopole) – No contact required with the switch – This switch senses the door movement.
Movement/Motion Sensor Switch (two way, double pole, dipolar) – Move your hand near the switch, and the light turns on.
Built-in IR sensor
Door sensor suitable for:
Automatic door activation in entryways and service doors
Short corridor and stairwell lighting control
Small utility rooms, closets and mechanical spaces
Movement/Motion sensor suitable for:
Hands-free switching in residential interiors such as kitchens, hallways and bathrooms
Commercial indoor spaces, including offices, retail areas and public corridors
Areas where reduced contact is desired for hygiene or accessibility reasons
Effective range: 5 cm – 10 cm
Maximum sensing angle: 100°
Input: 100-240V ~50/60Hz
Max Wattage load: 500W
Max: 250VA
Material: plastic
Weight: 60 gr
Dimensions: 83x35x19 mm
Cable length: approx. 2 m
Diameter of detector approx. 18 mm
Transformer Included

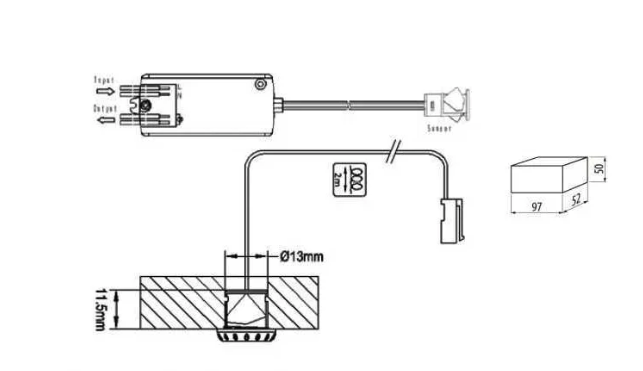

Fitting Instruction
