Soft Down Stay for Drop Down Cabinet Doors LONG Catch

Description

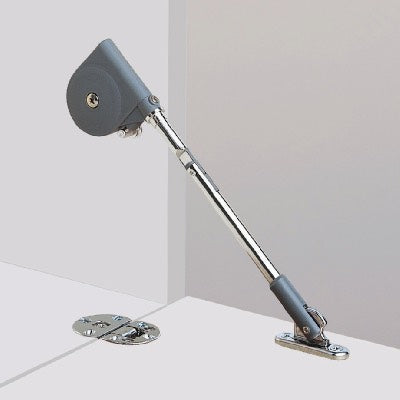

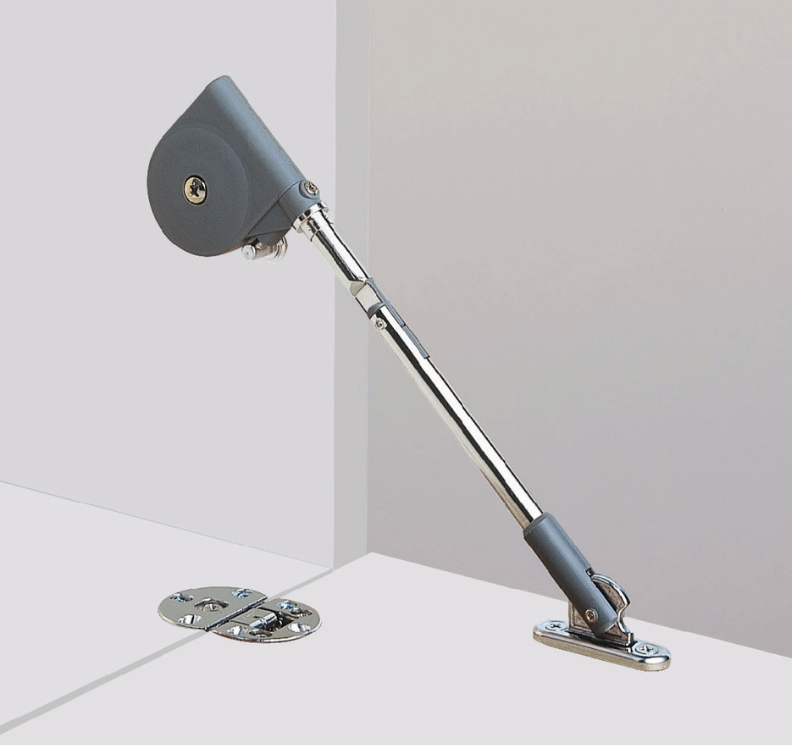

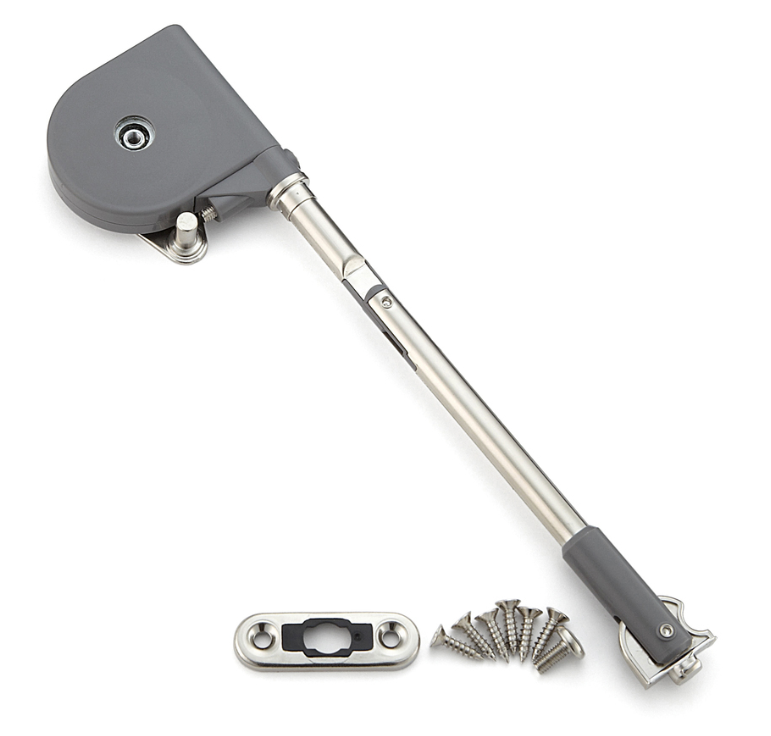

Soft Down Stay Lift for Drop Down Cabinet Doors Long with Catch

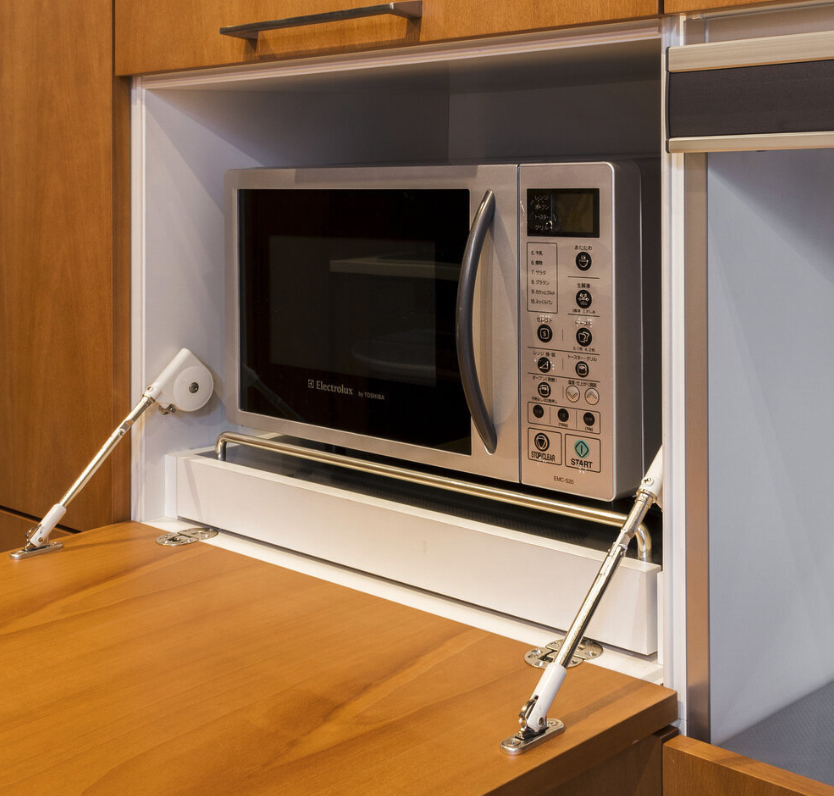

The soft close stay, made of steel, will find its application in flaps with a front height of up to 900 mm. with build in catch for holding the door in position when closed.
Its mechanism prevents the inert descent of the front door or flap.
Soft close for gently lowering of the flap with max torque 3.5-4.9N
Suitable for use in wood or glass in an upwards or downward fitting.
During assembly, it requires the use of flap hinges -not included.
Front height up to 900 mm and width up to 900mm
Requires the use of flap hinges
Approximate opening angle:  90°
Colour/Finish: Black, Brown, Grey and White
Material: Steel, Plastic
Requires a hinge: yes
Screws included: yes
Stop in any position: no
Type: Mechanical

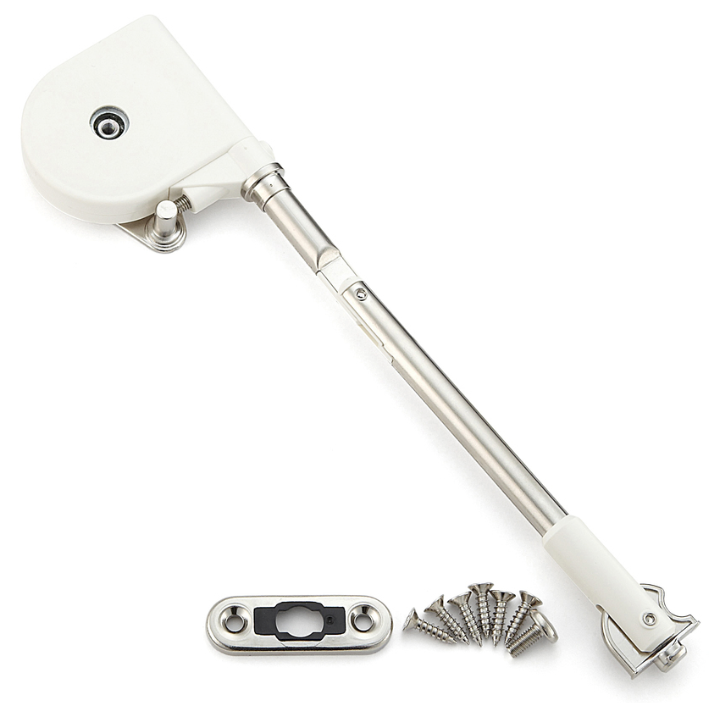

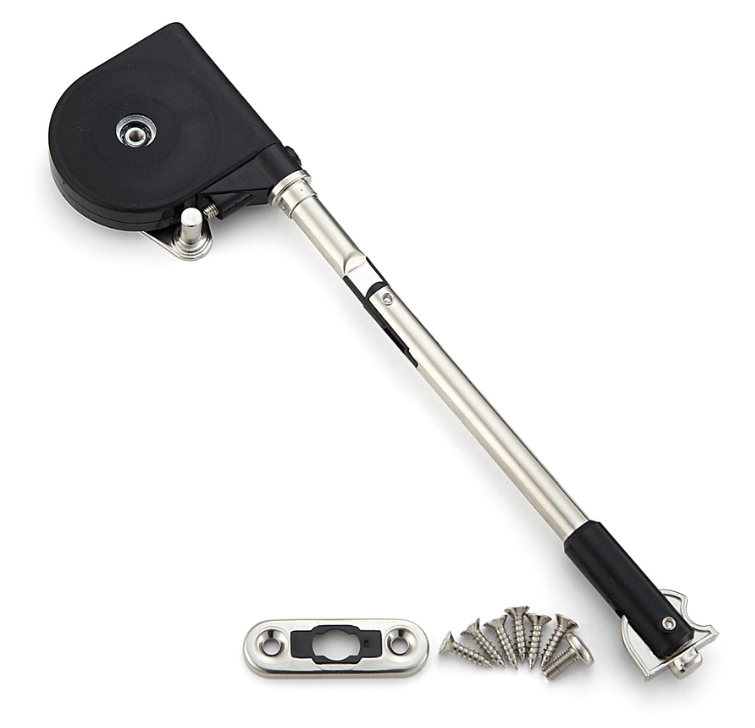

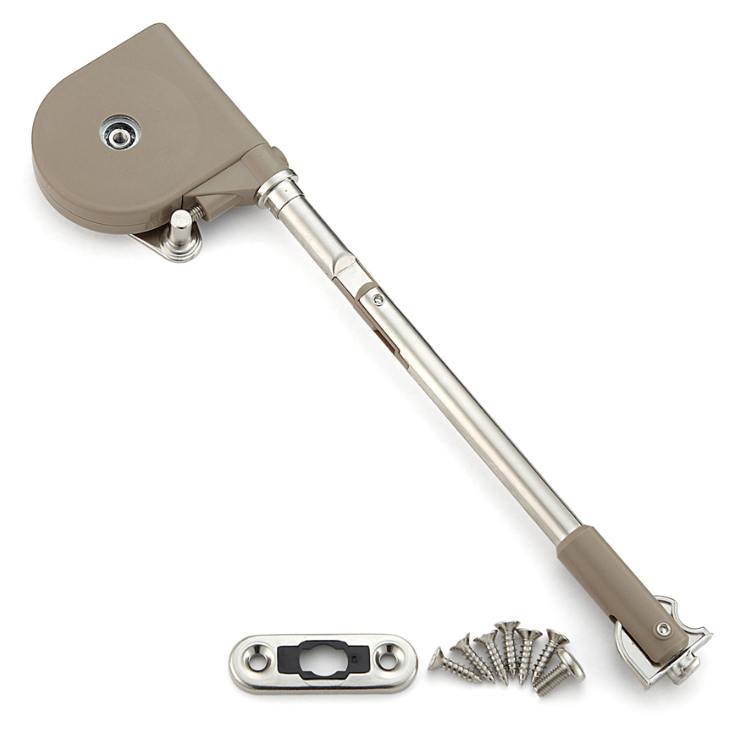

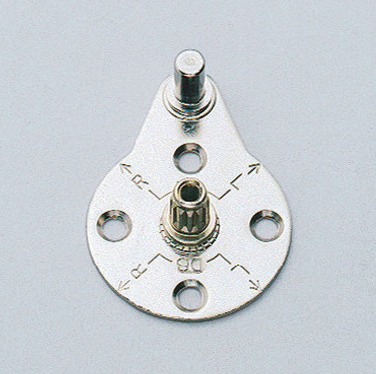

Kit Contents: 1 piece of stay, 1 pcs front mount, 1 pc frame mount and screws

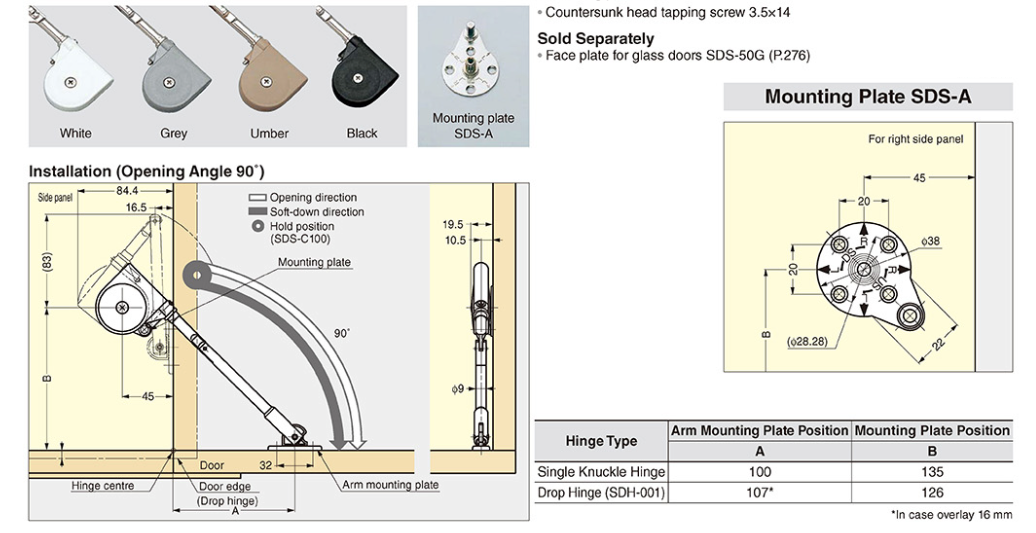

Installation manual to download with calculations for door size.
Face plate for glass doors sold separately
