Soft Down Stay for Drop Down Cabinet Doors SHORT Without Catch

Description

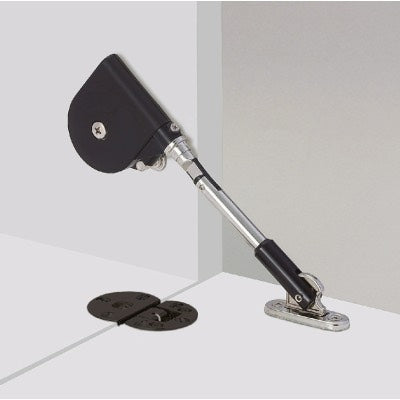

Soft Down Stay Lift for Drop Down Cabinet Doors Short-Arm without Catch

The soft close stay, made of steel, will find its application in flaps with a front height of up to 150-300mm without a catch for holding the door in position when closed.
Its mechanism prevents the inert descent of the front door or flap.
Soft close for gently lowering of the flap with max torque 0.5-3.7N
Suitable for use in wood or glass in an upwards or downward fitting.
During assembly, it requires the use of flap hinges -not included.
Requires the use of flap hinges and a catch to hold the door
Front height from 150 to 300 mm and width up to 900mm
Approximate opening angle:  90°

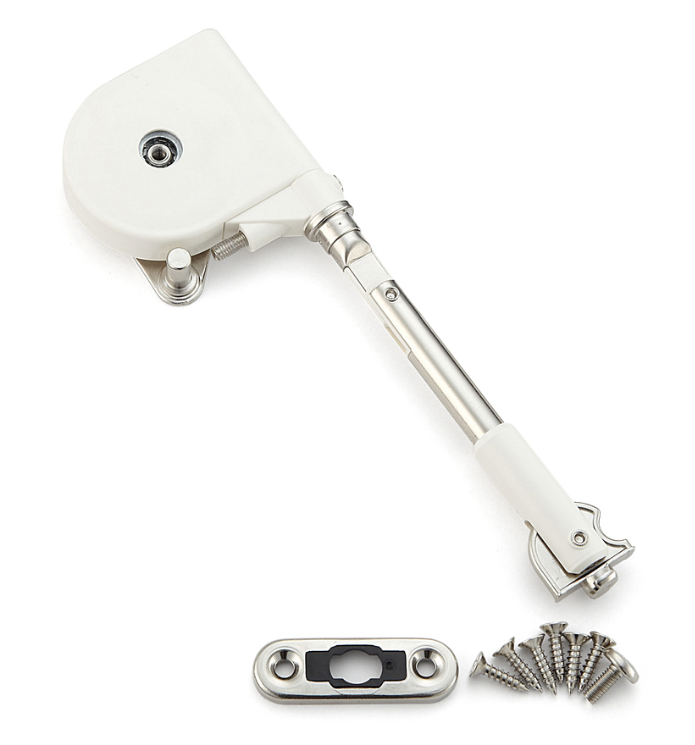

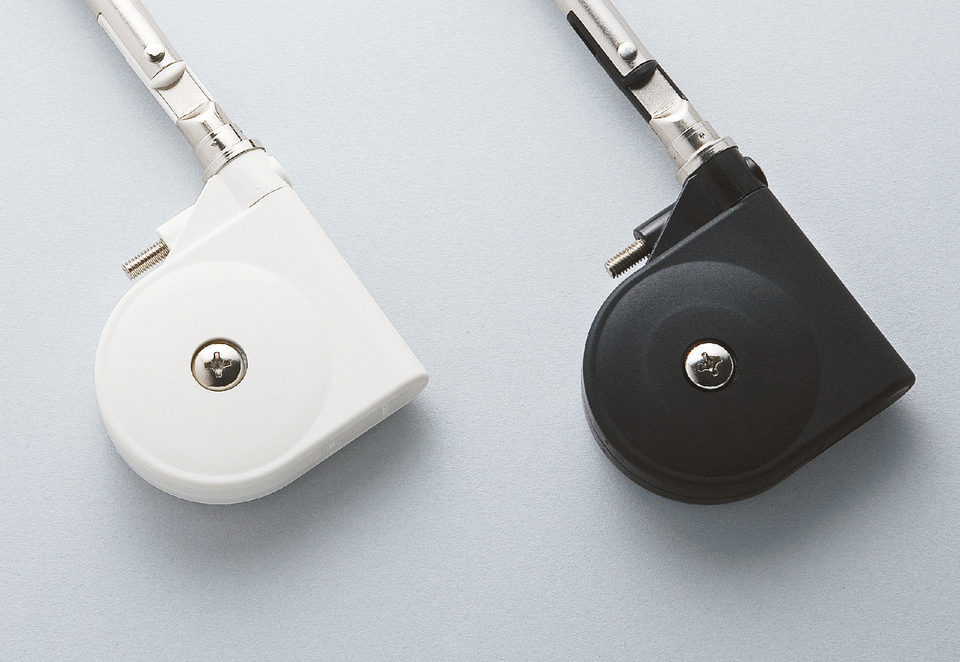

Colour/Finish: Black, White
TV versions are for 0.5-1.2N Torque Movement
TVZ versions are for 1.6-37N Torque Movement
Two stays will double the torque
Material: Steel, Plastic
Screws included: yes
Stop in any position: no
Type: Mechanical non-handed

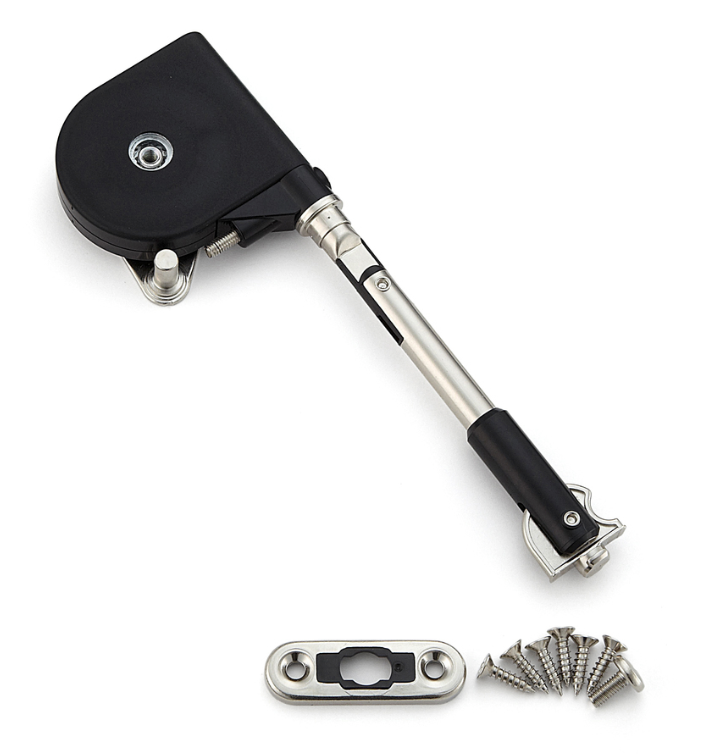

Kit Contents: 1 piece of stay, 1 pcs front mount, 1 pc frame mount and screws

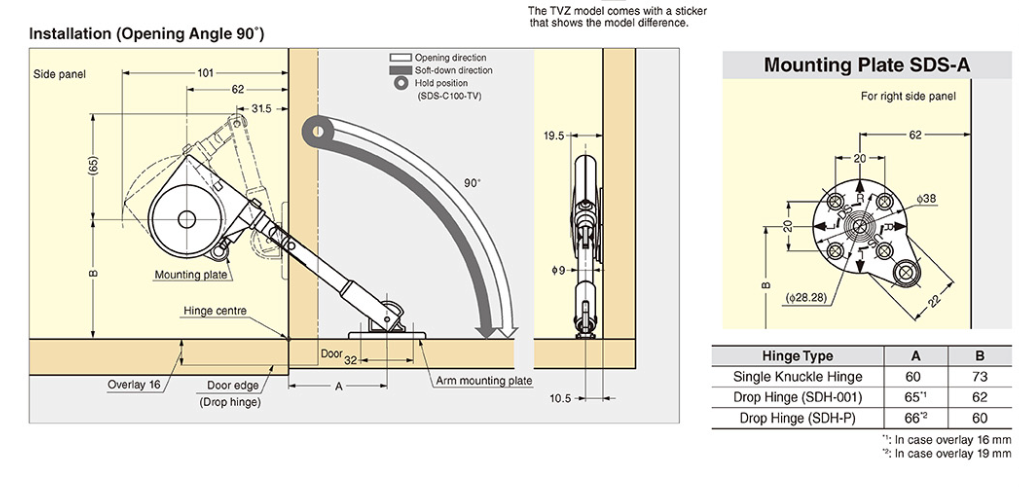

Installation manual to download with calculations for door size.
Face plate for glass doors sold separately
