Blum MERIVOBOX Drawer Set M Height INTERNAL Orion Grey

Description

Blum MERIVOBOX Drawer Set M Height INTERNAL Orion Grey

Components ONLY ( No Base, Back )

MERIVOBOX is simply unique thanks to its distinctive drawer side design, straight lines and unmistakable look. And the design line produces beautiful light reflections on the drawer side. Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand.
At the heart of the system is the cabinet profile with the same fixing position for all applications. This is the basis for the drawer of your choice. No matter which model you opt for, the front and front fixing bracket are always the same. A true platform that simultaneously reduces complexity and increases variety.
The three components cabinet profile, drawer side and front allow for variety with the same manufacturing process. MERIVOBOX – the true platform for your broad range.
Includes integrated BLUMOTION for soft and effortless closing and can be combined with SERVO-DRIVE or TIP-On
Insert the front in the holding position and simply clip on – easy attachment even if the pull out is already in place. Tool free front assembly and 3-dimensional front adjustment.

Available Length: 270mm, 350mm, 400mm, 450mm, 500mm, 550mm
Type: M Height INTERNAL (91mm)
Brand: Blum
Colour: Orion Grey
Design: MERIVOBOX
Drawer Side Height: 91mm
Fixing Method: Screw Fixing
Screw Fixings NOT Included
Height required: 108mm
Internal Depth: NL +3mm
Nominal Length starts: 270mm
Push to Open: Available 0-10Kg
Soft Close: Yes
Guarantee: Lifetime
Max. Weight Capacity: 40kg
Runner: Blumotion 40kg

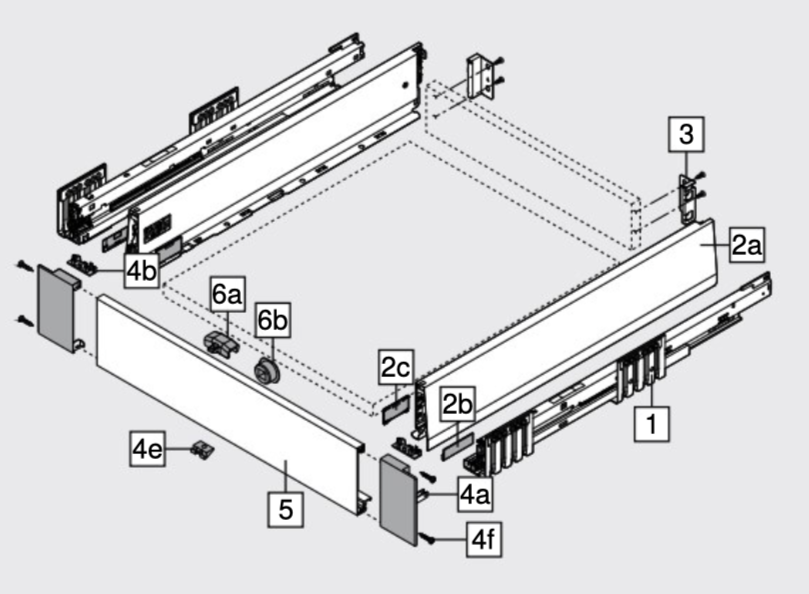

Included: Blumotion runners, sidesx2, fixing brackets, front fascia (to cut) with fixing set or push-to-open tip-on mechanism.

Instruction Available to download
