£25.78 excl. VAT
NEW EXCITING FINISH ANTIQUE BRASS-BESPOKE MADE
The benefits of CLIP top BLUMOTION are integrated into the wide angle hinge with 0-protrusion.
CLIP top BLUMOTION 155° features an integrated soft-close mechanism and is suitable for special applications, e.g. mitred applications.
This hinges is suitable for cabinet doors which require wide opening angles or contain inner pull-outs.
The zero-protrusion hinge ensures the drawer can pull forward past the door, unhindered.
To restrict the opening angle of the hinge to 110°, fit nylon stop, if cabinet sides are 23mm up to 34mm.
BLUMOTION gives silent and effortless soft closing function every time. ClipTop Blumotion 155°
High quality of motion even with small or light doors, this function can be easily deactivated if required via a switch on the hinge boss.
Hinge for door thickness 20 to 24mm *can be up to 31mm if combined with a 92° Opening Angle Stop

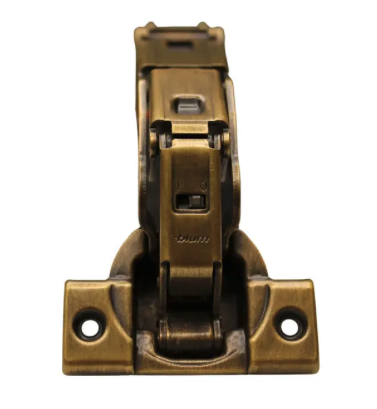

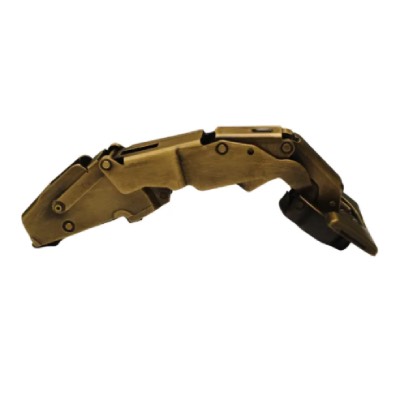

71B7550 Antique brass hinge for wider door openings specially tall units and units with drawers.
Brand: Blum
Application: Full Overlay
Finish: ANTIQUE BRASS Plated
Material: Steel
Opening angle: 155 Degree
Blumotion device: Integrated
Depth Adjustment: +3mm / -2mm with a spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

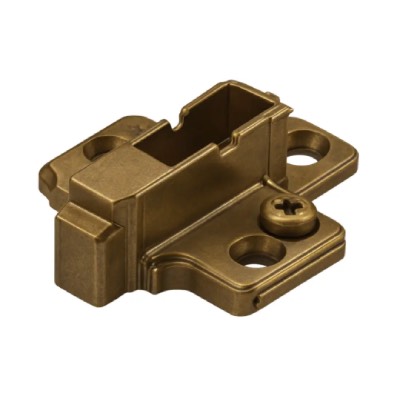

Mounting Plates not included, available from other listings Mounting Plates
This is a bespoke item, so the finish may vary slightly from the images shown.
Please contact us before purchasing if you have any questions, as returns may not be possible.
If we do agree to return, a refund ONLY will be provided as store credit.
In the event of insufficient stock, a replacement will be provided within 2-3 weeks.
if you are planning to purchase a large number of hinges, please purchase a sample.
This product does not come with a lifetime guarantee.
| Weight | 0.2 kg |
|---|
