Product Code: 70T6550
£4.35 excl. VAT
Blum 70T6550 UNSPRUNG 170 Degree Overlay Wide Angle Hinge
An unsprung hinge is required for push to open/handleless doors, and is used in conjunction with a Tip-On device.

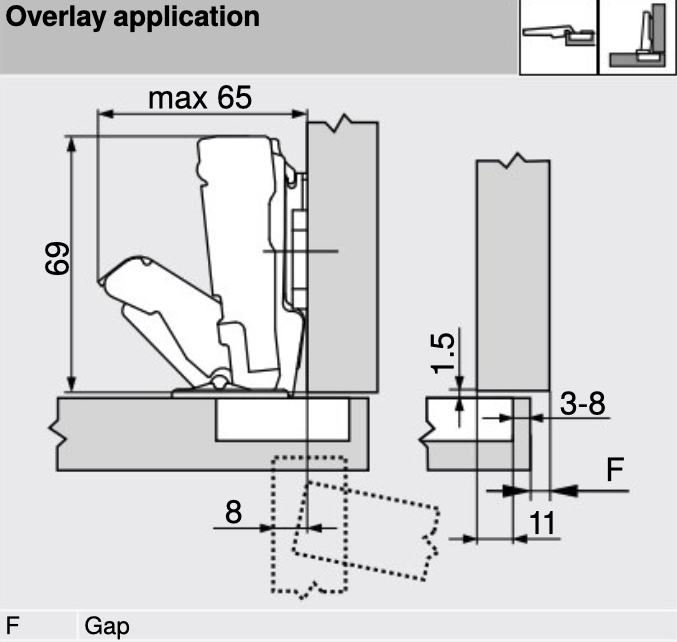

CLIP top Wide angle hinge 70T6550
Opening angle: 170 degree
Cranking: Full Overlay
Boss assembly: Screw-on
Material: Steel
Closing mechanism: UNSPRUNG
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm, convenient with spiral screw
| Weight | 0.2 kg |
|---|
