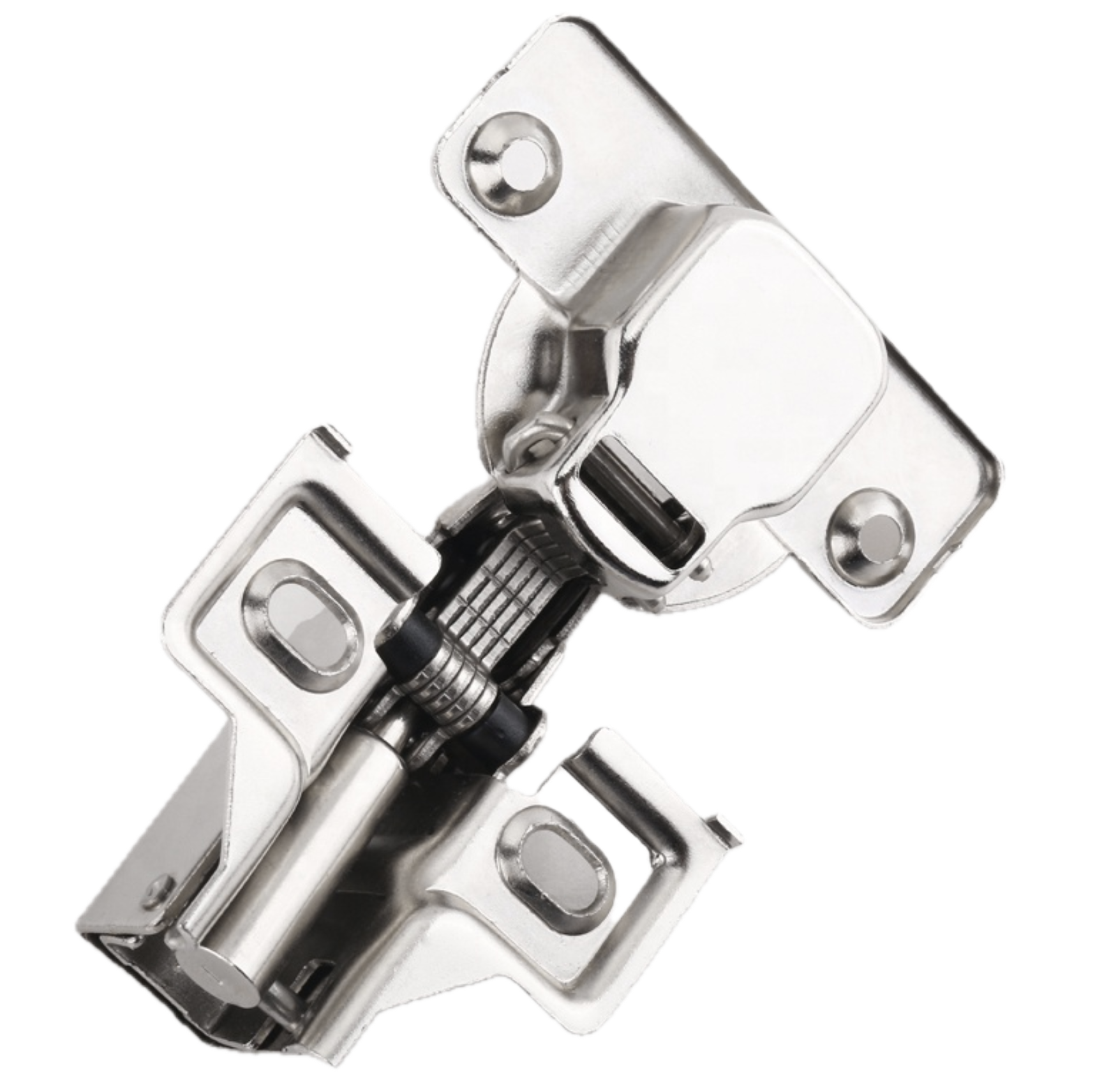

Cabinet Hinge Soft Close 100° Full Overlay Short Arm

Description

Cabinet Hinge Soft Close 100° Full Overlay Short Arm.

The soft close hinge is characterised by high durability, as it has been certified for 80,000 cycles.
The silent closing device used in the hinge detects the closing of the door and silently closes the front of the furniture body.
Short arm hinges are ideal for tight spaces where you don’t have room to fit standard concealed hinges.
As well as for the kitchen units with door frames.
Application: Full Overlay
Finish: Nickel Plated
Material: Steel
Opening angle: 100 degrees

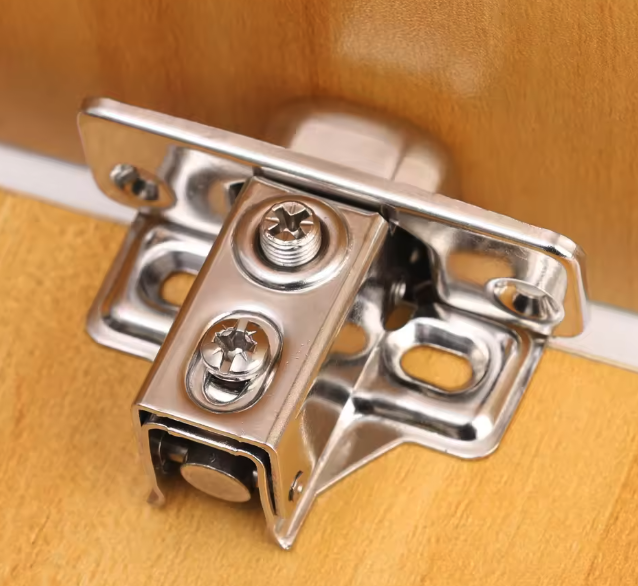

Mounting Plate: 0mm Spacing, cruciform fitted to the hinge, non-removable
Cup size: 35mm
Overall Length: 85mm

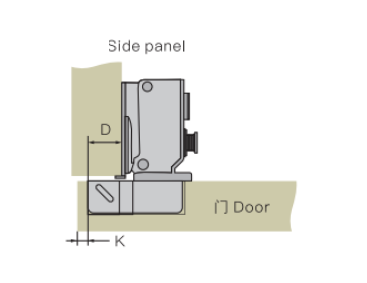

D=15.9mm, K=4mm
Blumotion device: Integrated
Design for wood screws 4.0 x 15/16 mm-not included Hinge Screws
Three-dimensional adjustment: +/-2mm side and +1.5/-1.5mm depth adjustment via spiral screw.
Pack Include: hinge, cruciform mounting plate
