Grass Tiomos 120 Degree Full Overlay Cabinet Hinge

Description

Grass Tiomos 120 Degree Full Overlay Cabinet Hinge

Grass Tiomos 120° Overlay Hinge.

The hinge details and functions have been completely redesigned and redeveloped from the top to bottom.
Also, the result is an elegant hinge system that easily meets all technical and functional requirements with special product details. Tiomos
Additionally, the damper system is concealed within the hinge arm. The result is a compelling design language for all applications.
Whether with or without damping.
In addition to the many functional features, one of the outstanding features of the hinge system is the integrated soft-close damping, which has three stages of adjustment. As a result, in every movement phase, the closing process is smooth and seamless.
And all this from an opening angle of just 30°.

Grass Tiomos 120° hinge system: Opening furniture doors mechanically; gently tapping the handle-free door is enough – to open it.

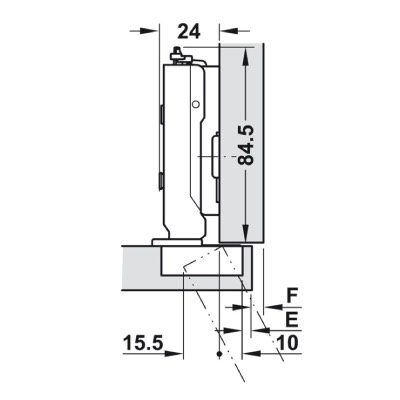

Up to 24 mm door thickness for 110/120° hinge (recommended for door thicknesses 24 mm and above, a trial fitting)
Version: Without soft closing mechanism or with soft close
Crank type: Straight
Door processing for assembly: with cup drilling
Cup drilling depth: 10.00 mm
Drilling Ø: 35.00 mm
Fixing: for screw fixing
Drilling pattern: 45/9.5

Order reference Order Hospa ⌀ 3.5 mm countersunk screws separately and Mounting plates screw or euro screw version Mounting Plates
NON soft close is suitable for Grass Kinvaro F-20 Flap system
