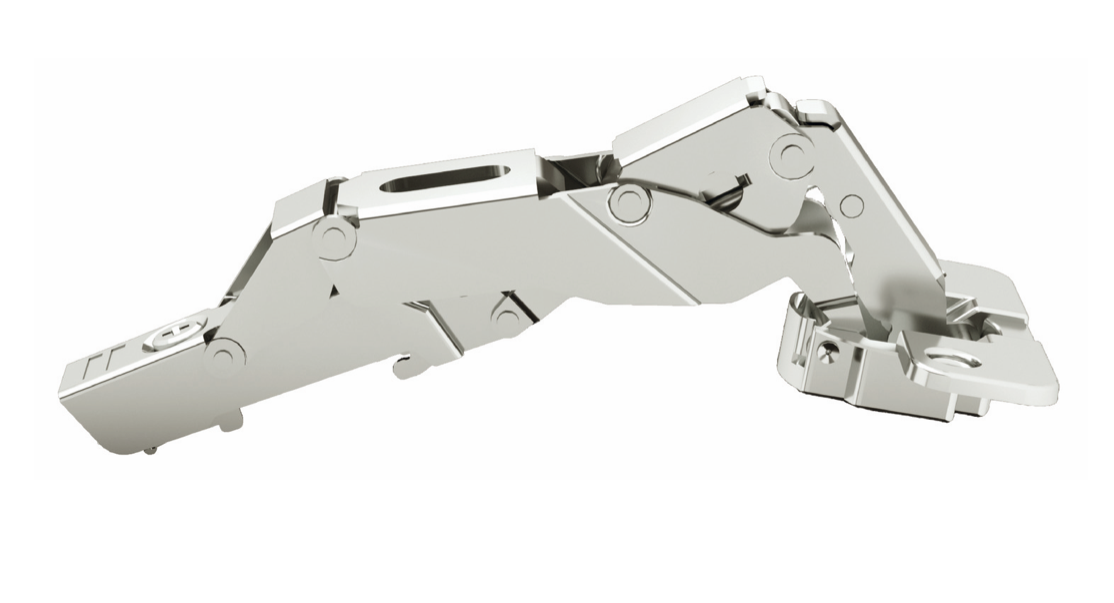

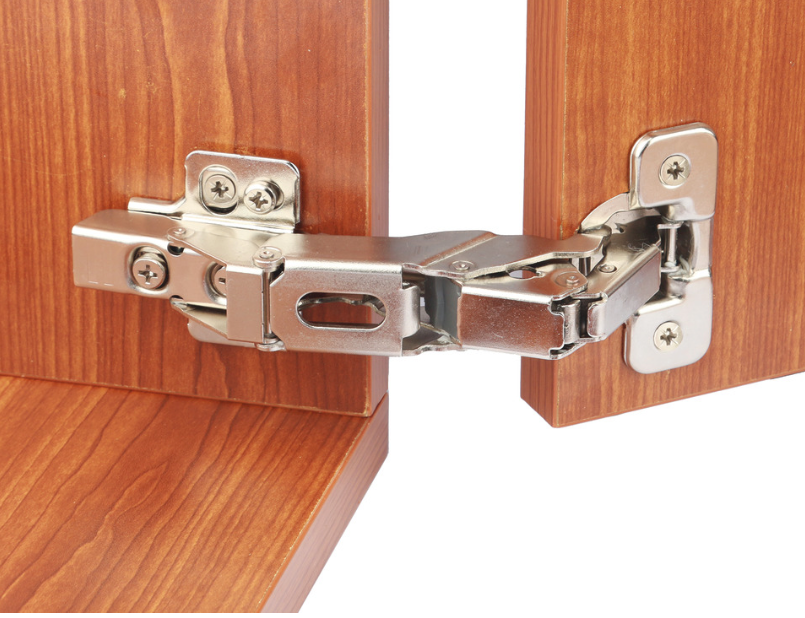

Hafele Metalla 310 Soft Close 155° Full Overlay Cabinet Hinge

Description

Hafele Metalla 310 Soft Close 155° 0 Protrusion Full Overlay Cabinet Hinge

This hinge is for the wood screws version
Designed for places where there is a need for a wider opening of the front
Suitable for cabinets with internal pull outs and extended trays
Hinge with tension / eccentric adjustment
Door Thickness: 14-24mm

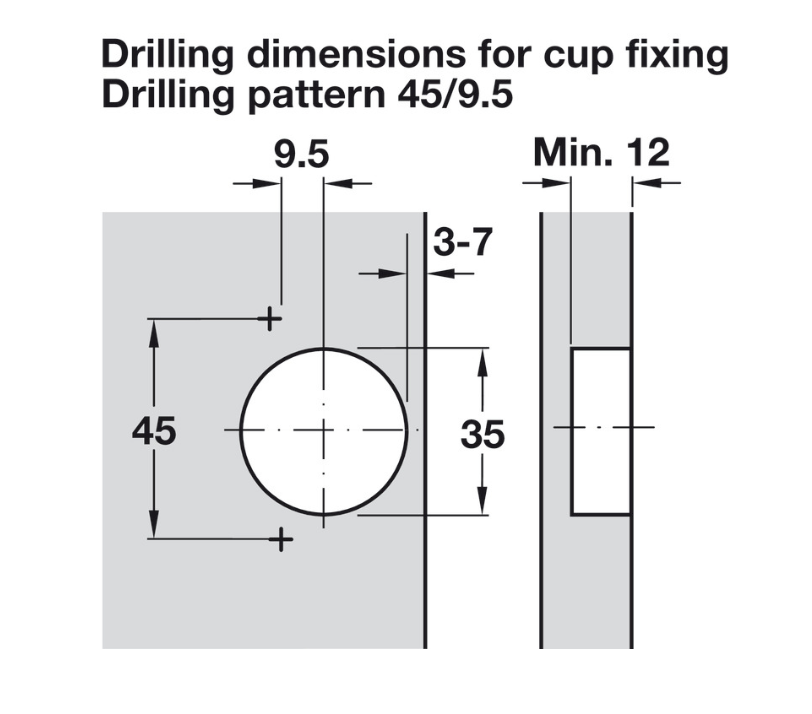

Cup Size: 35 mm hinge cup
Angle Opening: 155 degree
Material: Steel
Type: Full overlay
Finish: Nickel Plated
Soft close system – Closing time adjustment
Adjustment: side 3mm, Height 2mm, Depth: 2.5mm
Screws are NOT included

Mounting Plates NOT included
Suitable are 311.71.500 / 502 / 504
