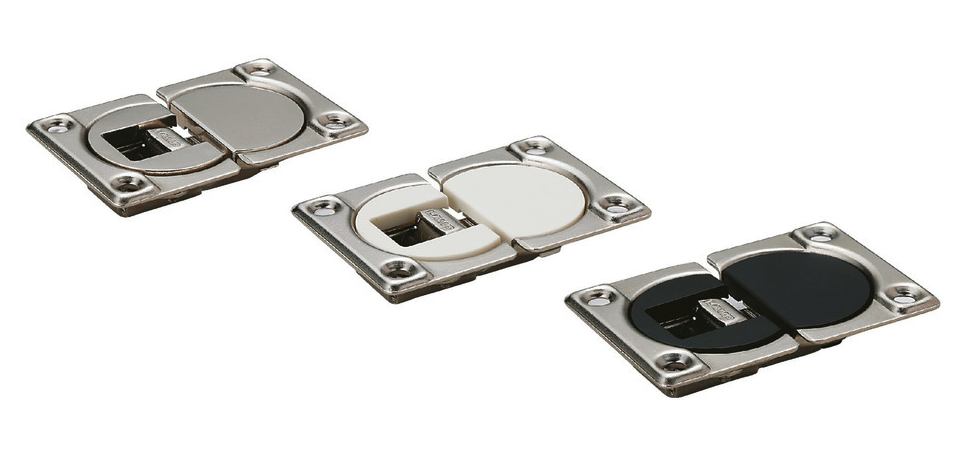

Sugatsune Square Flap Hinge 90° for Drop Down Cabinet Doors

Description

Flap Hinges Square 90° for Drop Down Furniture Glass Cabinet Doors

Flap Hinges 90 degree Hinge for Drop Down Furniture Cupboard Cabinet Doors
Flap hinge without a closing mechanism.
Designed for the installation of the flap glass door-2 requires per door or more
Hinges are unsprung and overlay only. For 16-20mm wood doors
Application for flap doors with complementary stay lift PD-MDLIFT-P1-D.
Hinge Type: UNSPRUNG
Finish: Nickel, Steel
Front mounting: for screws-NOT included (require 3.5×15/16mm wood screws)

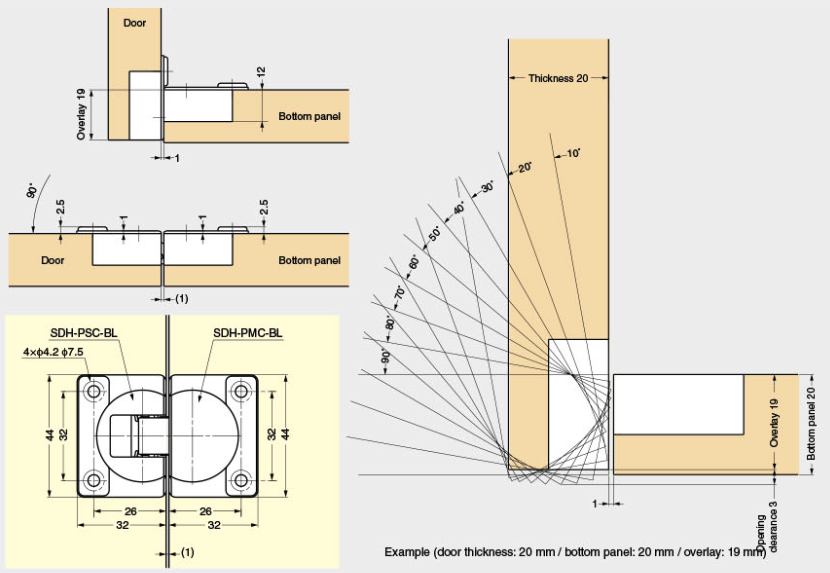

Overall Size: 65x43mm

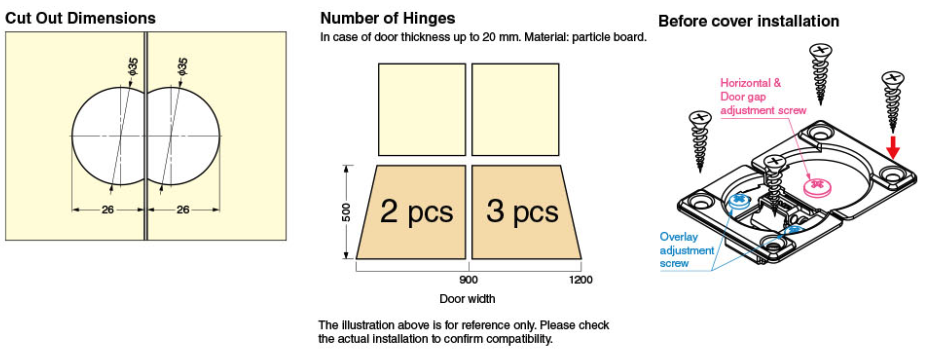

Hinge cup diameter: 35 mm
Hinge depth: 12mm
Those are sold as singles

Cover Caps finish available in: Black, Chrome, White
