£0.86 excl. VAT
Sugatsune Mounting Plate Nickel Olympia 0mm Spacing

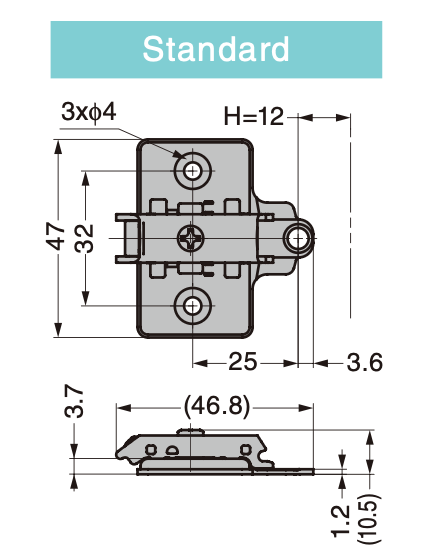

Sugatsune 360-P4W-32T Medium Duty 0 mm Mounting Plate
Suitable for: Olympia Hinges Series
Spacing: 0mm
Material: Steel
Finish: Nickel Plated
3-way adjustment function
Depth: +1.5/-2.5 mm
Vertical: +/- 3 mm
Horizontal: 0/-4 mm
Size: 58 mm x 55 mm x 22 mm
For Sugatsune Olympia Concealed Hinges
Value of H for inset installation is “door thickness + 17 mm”.
When using with the GH-360FP, value of H is “door thickness + 19 mm”.
Alternative 4-hole 360-P6WT available for heavier doors
| Weight | 0.025 kg |
|---|
