£1.73 excl. VAT
Libra Concealed Cabinet Hanger Mounting H1 Unhanded Fixing

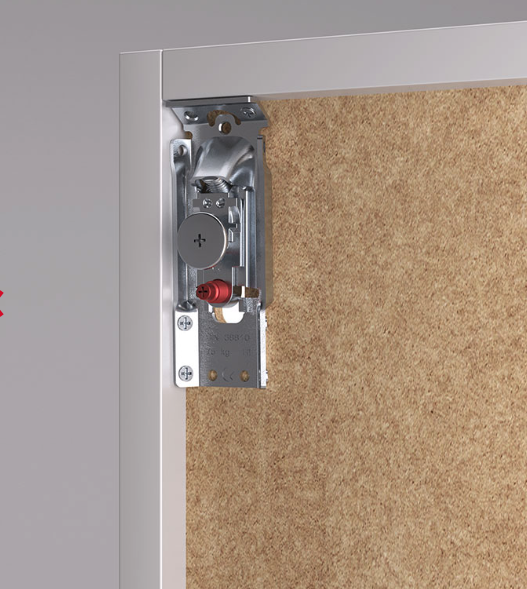

Cabinet hanger concealed behind rear panel, only cover cap is visible inside the cabinet
Features an innovative anti-turnover device with vertical and horizontal adjustment.
Application: For Hanging Wall Units
Load bearing on two hangers: 130Kg
Fixing: Screws
Length: 100 mm
Depth: 15 mm
Width: 37 mm
Material: Steel
Finish: Zinc Plated
Load bearing: 130 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load)
Adjustment: Two-way adjustment: Vertical: 13mm, Horizontal: 12mm

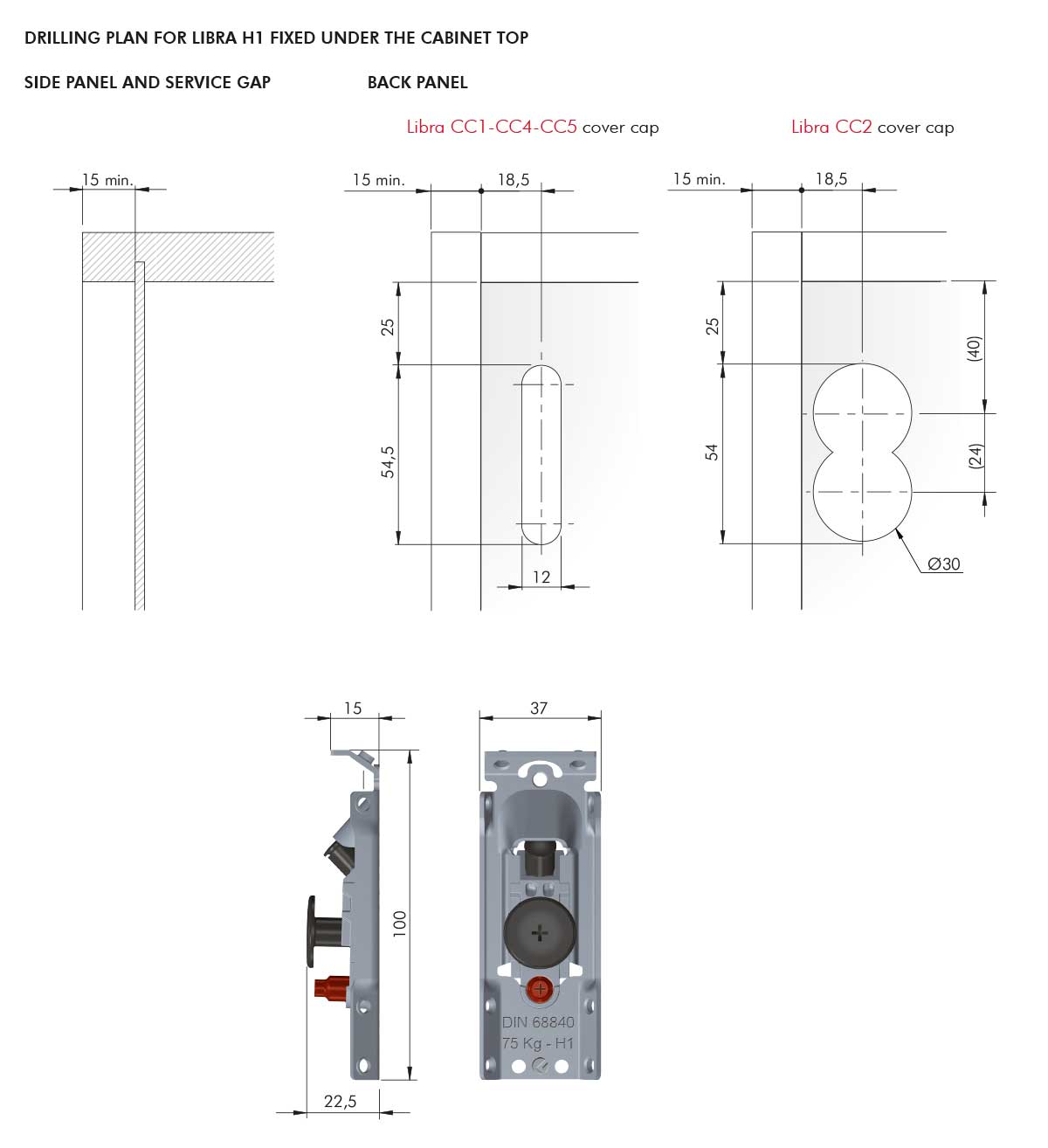

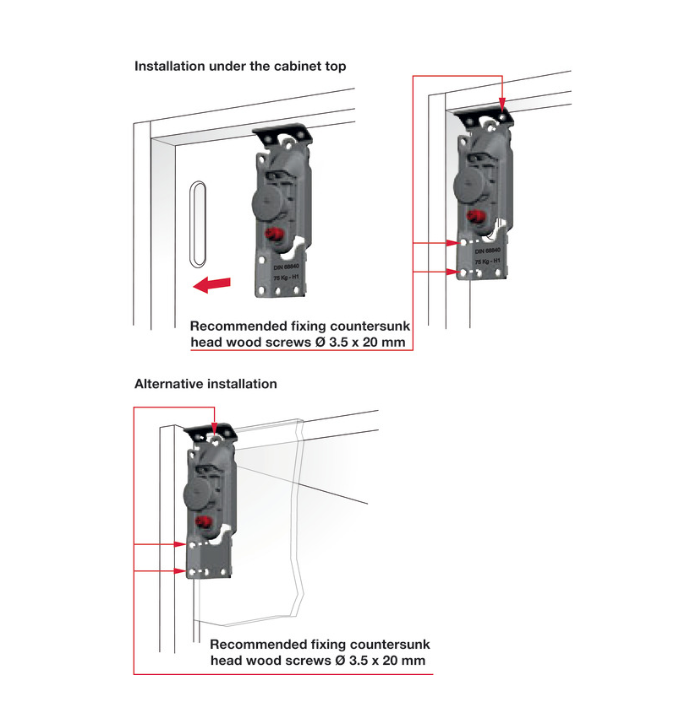

Installation: Dowels/Screw mounting:
Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180°
Sold as a single item
Order separately: Double wall Plate or Cover Caps
| Weight | 0.035 kg |
|---|
