Cabinet Pocket Pivot Sliding Door Gear Accuride 1319

Description

Cabinet Pocket Pivot Sliding Door Gear Accuride 1319

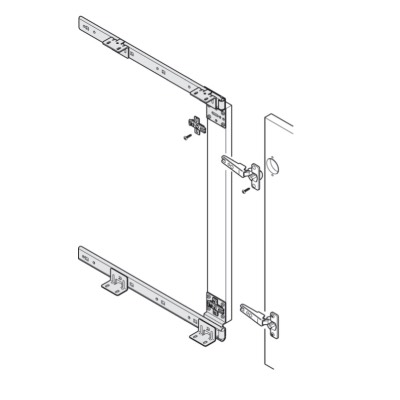

Pocket Pivot-Sliding Runners Accuride-1319 is A simple and effective Pivot Sliding Door Gear.
It helps to free up space taken by The Traditional Hinged Door by retracting back into the cabinet carcass or pocket.
Suitable for vertical or horizontal use
Maximum allowed door weight: 5.5kg (up to 25kg if used with 1316 Synchronised Kit-order separately)
Maximum door height: 700mm (door height up to 2300mm with 1316 synchronisation kit-order separately)
Recommended door width: 600mm
Door thickness: 16-20mm
Material: Steel
Make sure the cabinet is deep enough to accommodate the runner installation length.
Inset doors: You will need to allow space for the door inside the cabinet, the calculation is:
Cabinet depth – door thickness – 3mm clearance = runner length (or shorter)

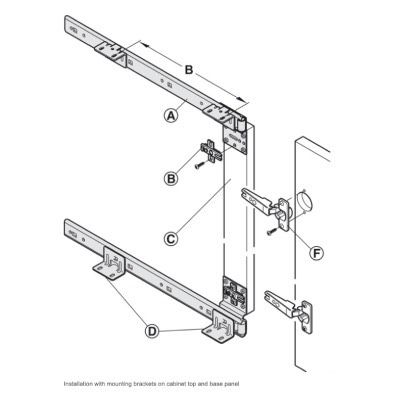

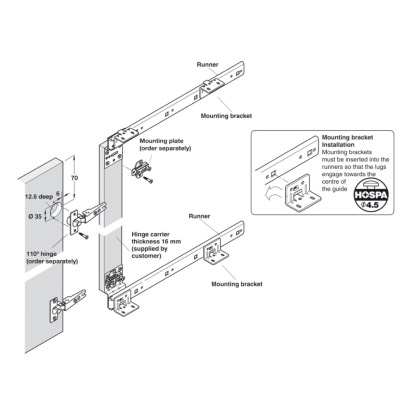

A hinge carrier strip is not supplied and must be made from wood or MDF
The door will hide inside the cabinet as much as indicated by ‘extended length’.
Please make sure the cabinet is deep enough to accommodate the slider ‘length’.

Pocket Pivot-Sliding Runners Accuride-1319

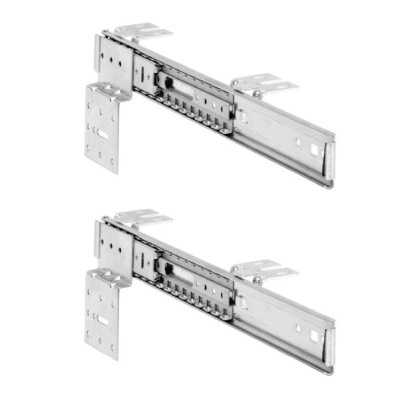

Set consists of:
4x zink plated mounting brackets
2x zink-plated runners
Hinges required per door height:
Door below 915mm = 2/3 hinges depending on width
915-1193mm = 3 hinges
1194-1498mm = 4 hinges
1499-1803mm = 5 hinges
1803-2300mm = 6 hinges
Hinges and plates need to be ordered separately – available in related products below
Blum Clip Hinge Mounting Plate  175H7100
Blum Clip Top Full Overlay Cabinet Hinge  75T1550
