Price range: £33.00 through £38.00 excl. VAT
15 in stock
15 in stock

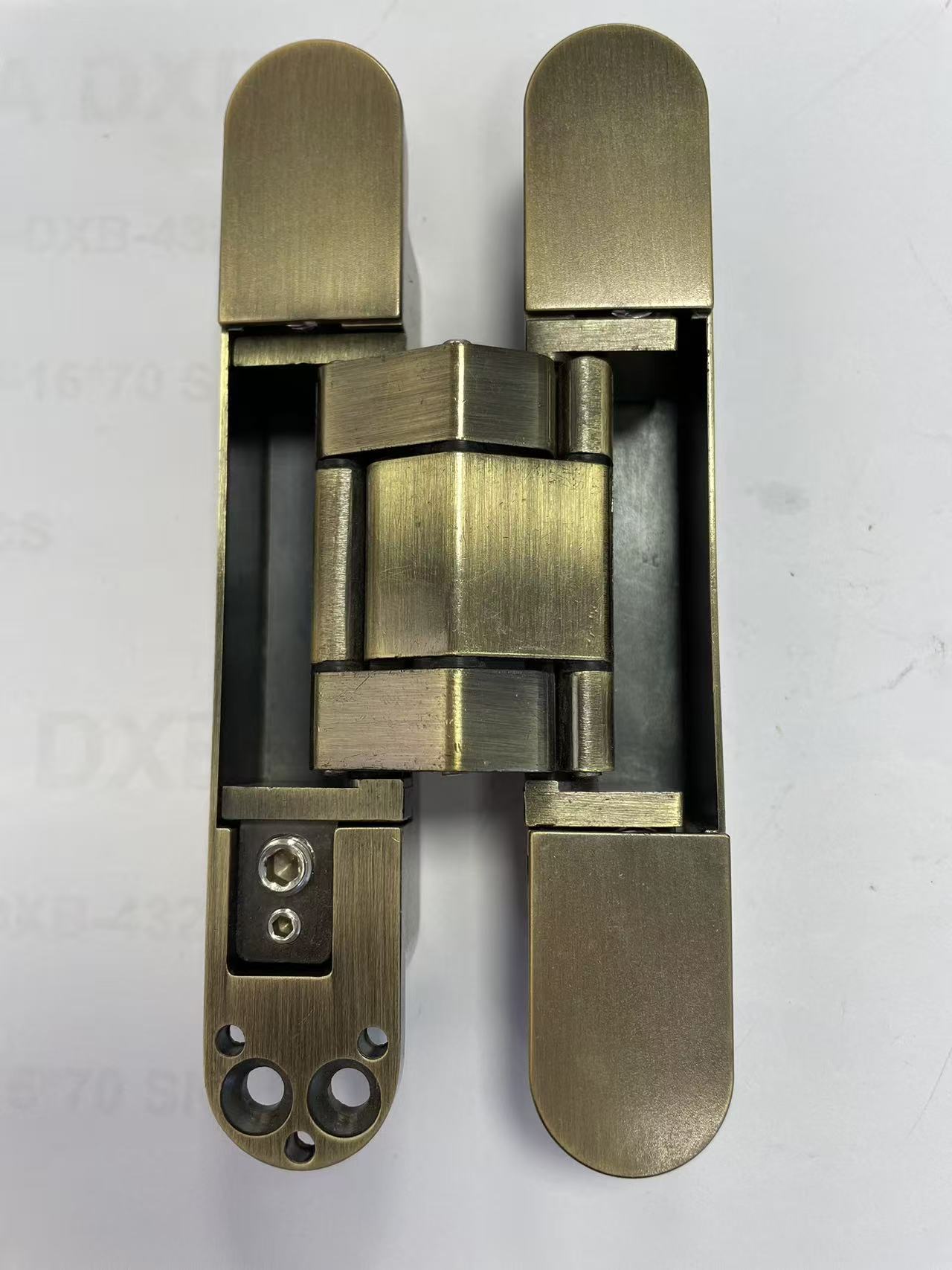

Concealed Adjustable Invisible Door Hinge 40kg/80kg Antique Brass
3D Concealed medium Duty Door Hinge for up to 80kgs.
Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware.

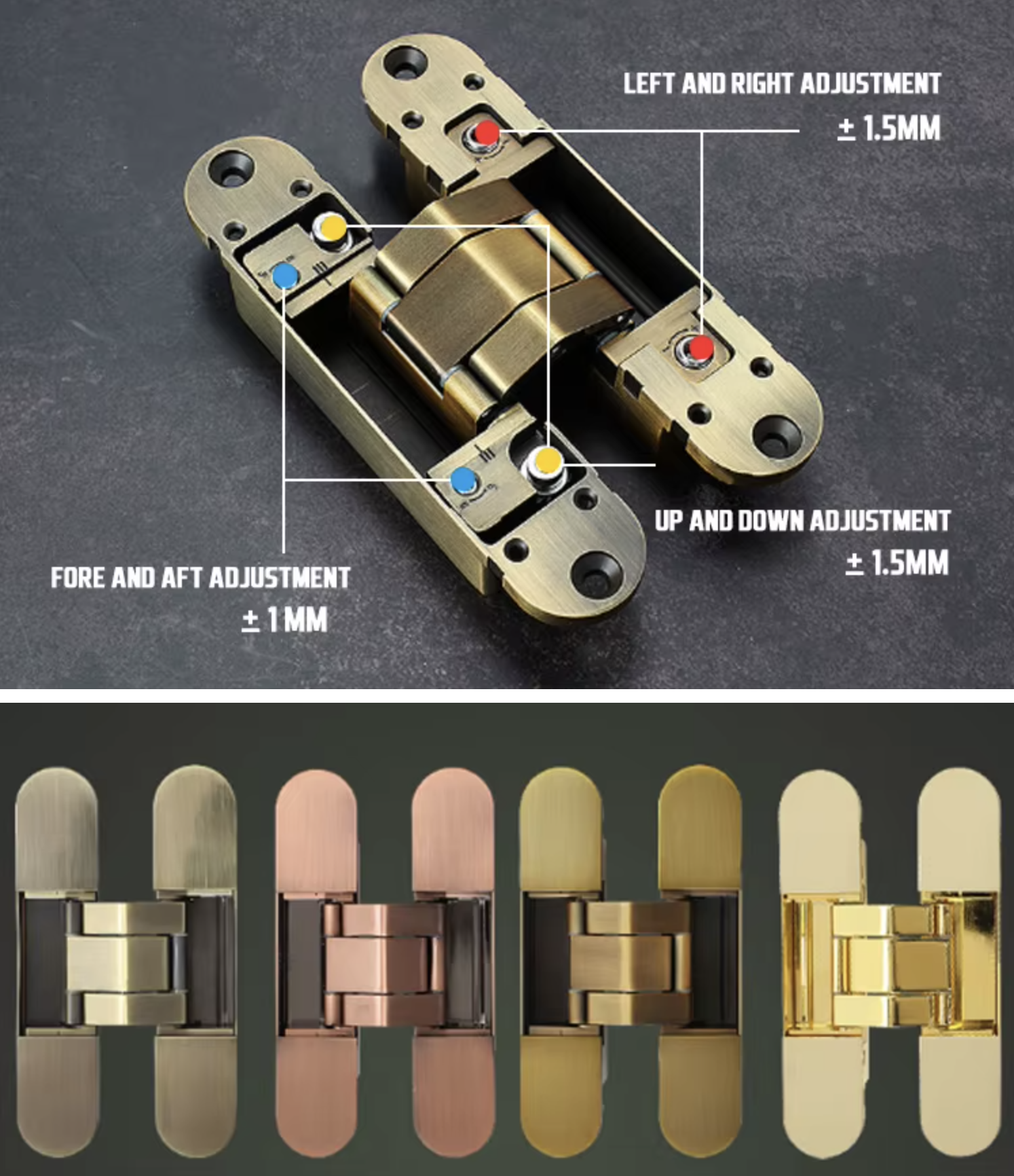

For doors 29mm thick, the hinge provides a 180º opening. Adjustment bolts are concealed behind front covers that slip on and off easily.
You may require 2 or 3 hinges, depending on the weight of the door.
40kg Hinge Version-150mm Height:
Overall Hinge Height: 150mm
Hinge Thickness: 25mm
Hinge Width: 25mm
Min Door Thickness: 29mm
Minimum Door Frame: 21.5mm
Door Weight: 40kg for 2 hinges & 50kg for 3 hinges
80kg Hinge Version-177 Height:
Overall Hinge Height: 177mm
Hinge Thickness: 25mm
Hinge Width: 28mm
Min Door Thickness: 35mm
Minimum Door Frame: 21.5mm
Door Weight: 80kg for 2 hinges & 100kg for 3 hinges
Material: Zinc Alloy with S/S Shaft
Finish: Antique Brass
Opening Angle: 180 Degrees
Cycle Test: 300,000
Pack: 1 Hinge including Screws, cover plates
| Weight | 0.5 kg |
|---|---|
| Height | 150 mm, 177 mm |
