Sugatsune Concealed Straightener Bar for Large Doors

Description

Sugatsune Concealed Straightener Bar for Large Doors

Another area where design has caused problems for installers is with the evolving trend for ever larger cabinet and wardrobe doors.
Sugatsune Concealed Straightener Bar.
This has brought a clean look to interiors which we all appreciate, and a larger opening is often more practical.
Larger doors however put a greater stress on the fittings and materials used to produce them.
One possible result, particularly with composites, is that the door will warp.
In Europe where they have been making doors from thinner materials for some time, it is standard practice to reinforce with tensioner bars.
Sugatsune has found a solution that prevents warping. The whole system can be also completely concealed.

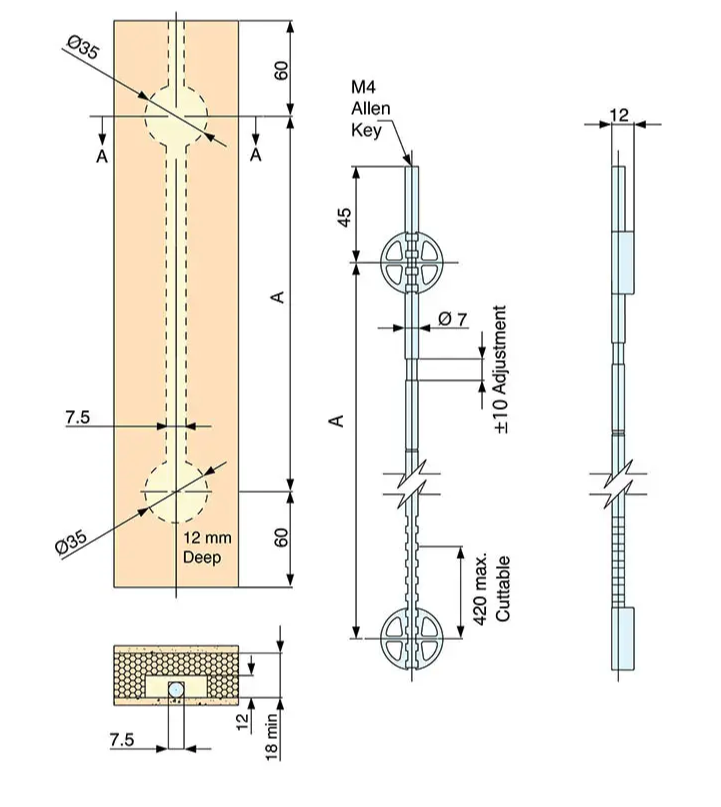

The TN423 is a tensioner bar that is adjusted with an Allen key from the top edge of the door. Info
Simple refinement that means the reinforcement can be completely concealed within the door construction itself, remaining invisible to the user.
The rod has a threaded section, when turned by a hex key, it will apply tension to bring the door back to straight and true.
The TN423 is available in a range of cuttable lengths.
Can be cut down by 400mm, one size can often cover a wide range of different size doors.
Door Thickness Min: 12m
Bar Size: 7mm
Cup Size: 35mm
Length Available: 1500mm, 1900mm, 2300mm, 2600mm
*1500mm suitable for door 1200mm-1600mm
*1900mm suitable for door 1600mm-2000mm
*2300mm suitable for door 1900mm-2400mm
*2600mm suitable for door 2200mm-2700mm
Cutting Depth: 7mm
Bar Cutting: 420mm max
Sold as a single unit.

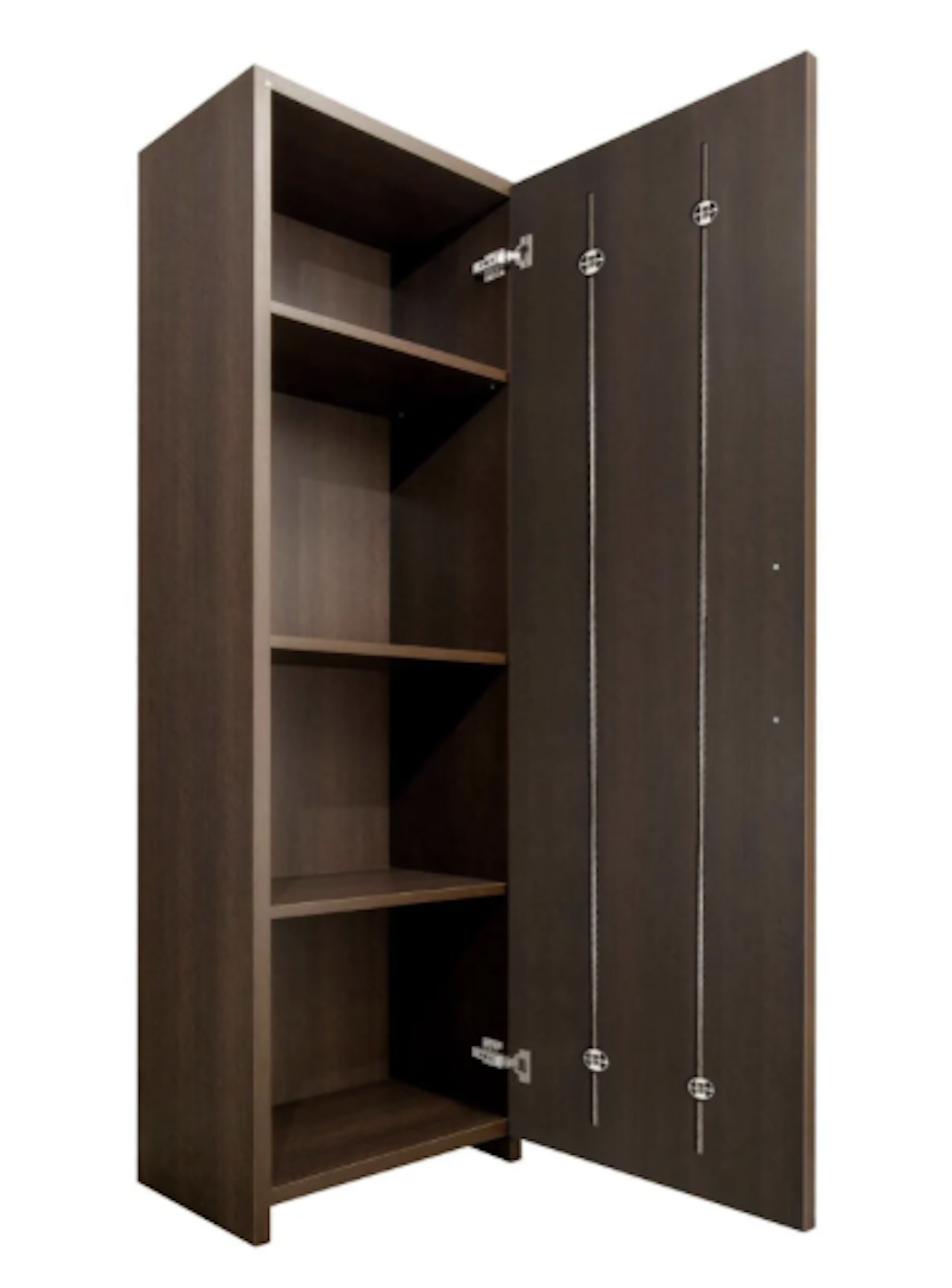

Usually two are required per door.
Other shorter straighteners are available too. Straightening bar
