Hawa Concepta Folding III Track Set 20/25 Silver

Description

Hawa Concepta Folding III Track Set 20/25 Silver

Pivoting doors, sliding them in at the side and parking them in the smallest of spaces – Hawa Folding Concepta III extends the design possibilities by another dimension, which is folding the doors beforehand. This leaves room for structures with a particularly large area, since two pairs of doors make it possible to have cabinet fronts measuring up to 3000 mm wide and 2700 mm high
Track Set Suitable for Hawa Folding Concepta III
Suitable for: 2, 3, 4 doors
Length: 1272mm, 1954mm, 2539mm
Mounting: Left or Right
Material: Aluminium
Finish: Silver, anodised

Supplied with

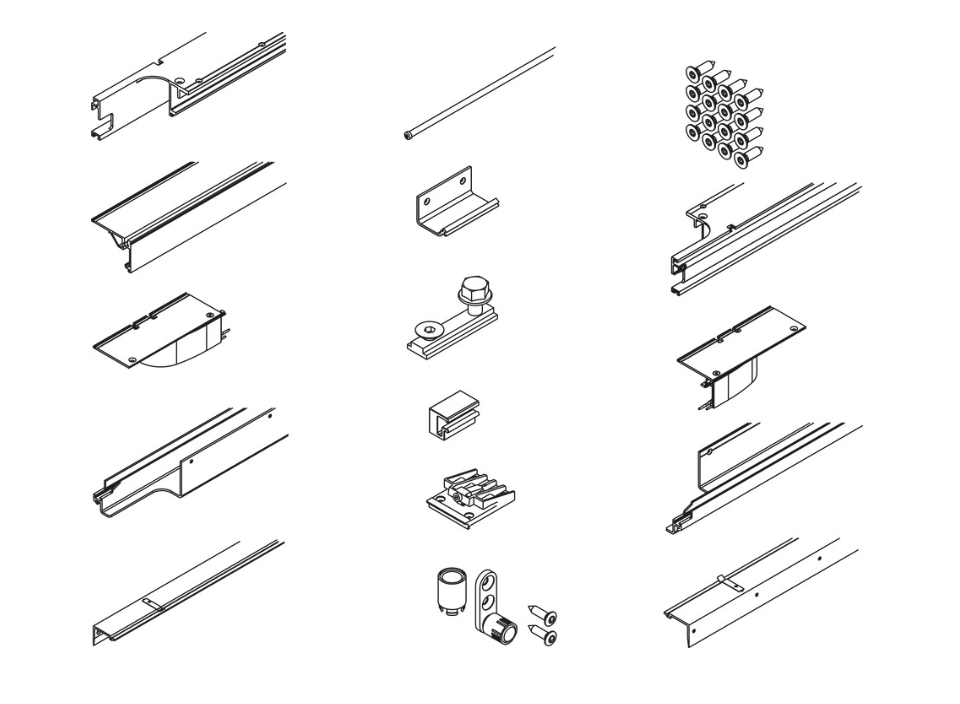

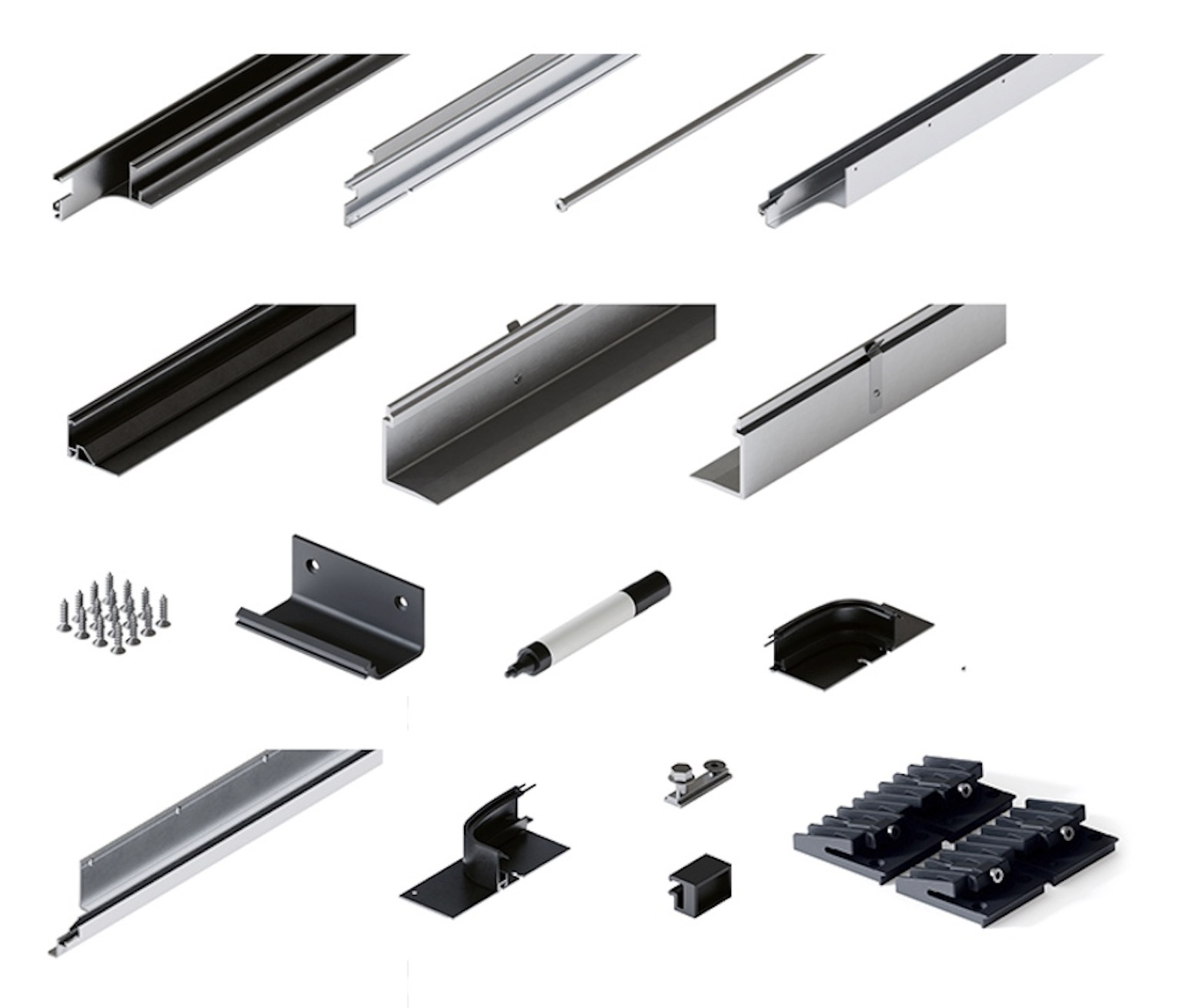

Track set for 2, 3 or 4 doors includes:
A Double running track top left, anodised aluminium, length 820 mm
B Running track front, anodised aluminium, length 1272 mm, 1954 mm
or 2539 mm
C Running track curve, left, anodised aluminium
D Bottom guide track left, anodised aluminium, length 820 mm
E Connector, top left length 788 mm
F Connecting profile for Connector, top, aluminium, length 660 mm
G Connector clips, bottom, black plastic, length 94 mm
H Connector part for running track curve, zinc-plated steel
I Double running track support, black plastic
J Running track adapter, anthracite plastic, set of 4 pieces
K Stop set for 3 doors push/pull, anodised aluminium
L Countersunk head screw for running track adapter, 4.5×16 mm, set of
16 pieces
M Double running track top right, anodised aluminium, length 820 mm
N Running track curve, right, anodised aluminium
O Bottom guide track right, anodised aluminium, length 820 mm
P Connector, top right, length 788 mm

Order fitting sets separately
