Ceam 3D Door Concealed Adjustable Hinges 1130

Description

CEAM 3D Concealed Door Hinge 1130 Adjustable 40-60 kg
Concealed medium duty hinge for unrebated and rebated flush-faced timber doors
Suitable for cabinet doors from 30mm thick
Removable cover plates conceal adjustment screws
Opening Angle: 180 degree
Material: Zinc Alloy
Fire Resistant: 30min
Hinge Height: 134mm
Hinge Width: 24mm
Hinge Depth: 21mm

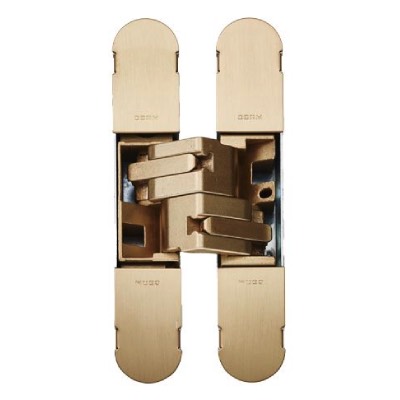

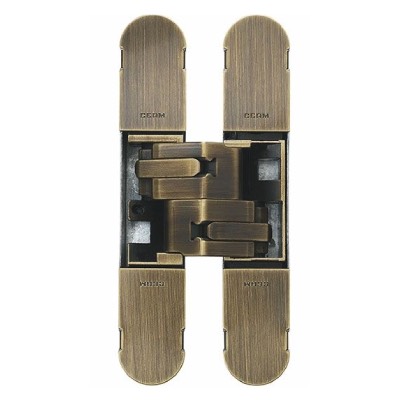

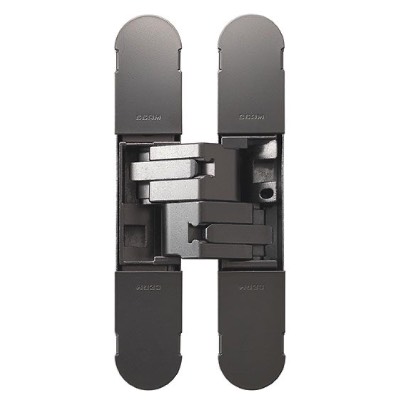

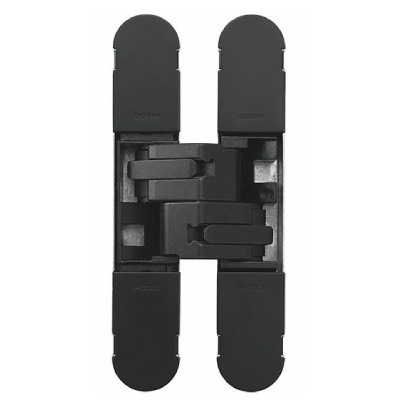

Finish Available: Antique Bronze, Black Nickel, Black Matt Varnish, Brass Plated, Bronze Plated, Nickel Plated, Champagne, Galvanic Satin Brass

Maximum adjusted door weight:
40kg – Max Loading 2 Hinges
60kg – Max Loading 3 Hinges
Fitting instruction available

Sold as Single Unit
