Concealed Surface Mounted Sugatsune HES 140 Door Hinge

Description

Concealed Adjustable Surface Mounted HES 140 Door Hinge

3D Concealed heavy duty door hinge for up to 65kgs.
Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors.

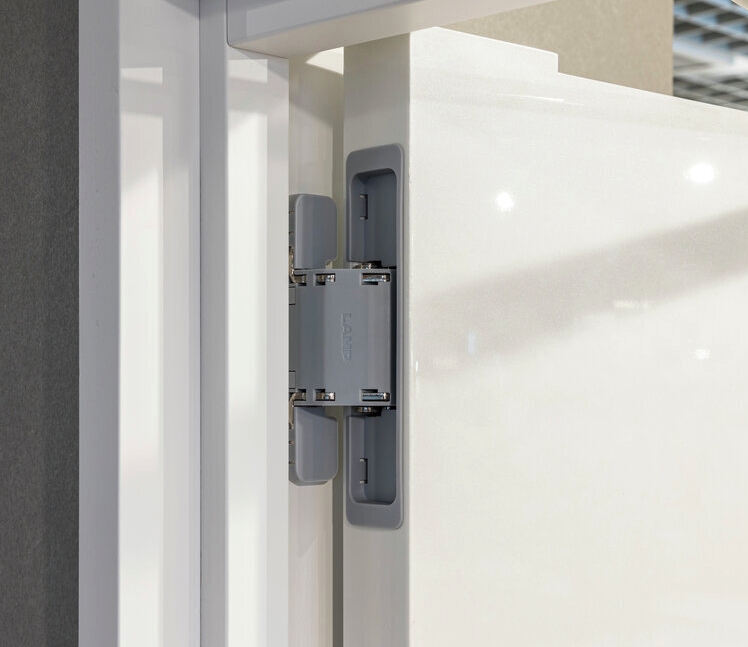

Concealed hinges are installed within the door and frame, providing a clean and minimalist look.
The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware.
Concealed heavy duty hinge for un-rebated flush faced quality timber doors.
Surface-Mount Concealed Hinge from Sugatsune, designed for easy installation and a sleek, hidden look, perfect for high-end furniture and architectural projects.

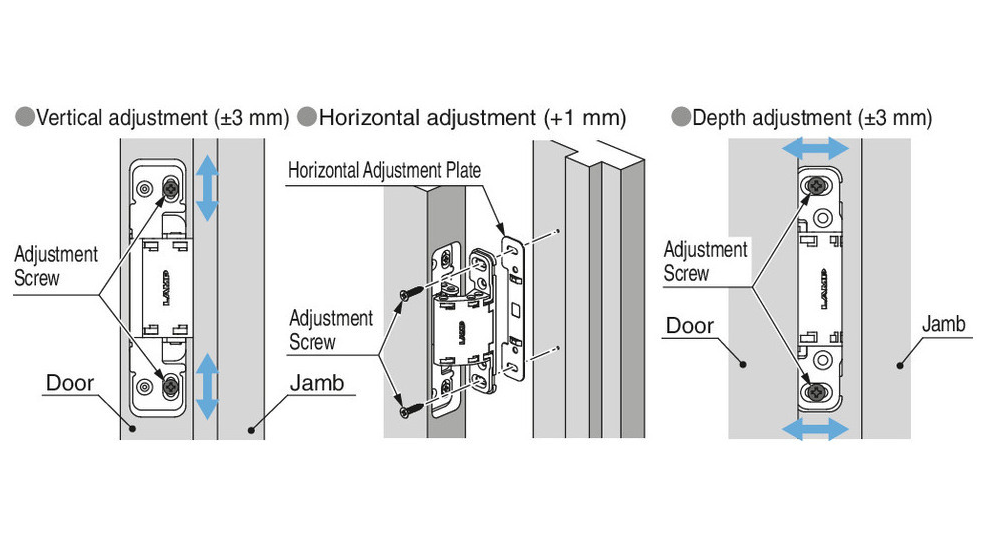

This award-winning hinge offers 3-way adjustment and exceptional durability, having passed a 300,000 open/close cycle test

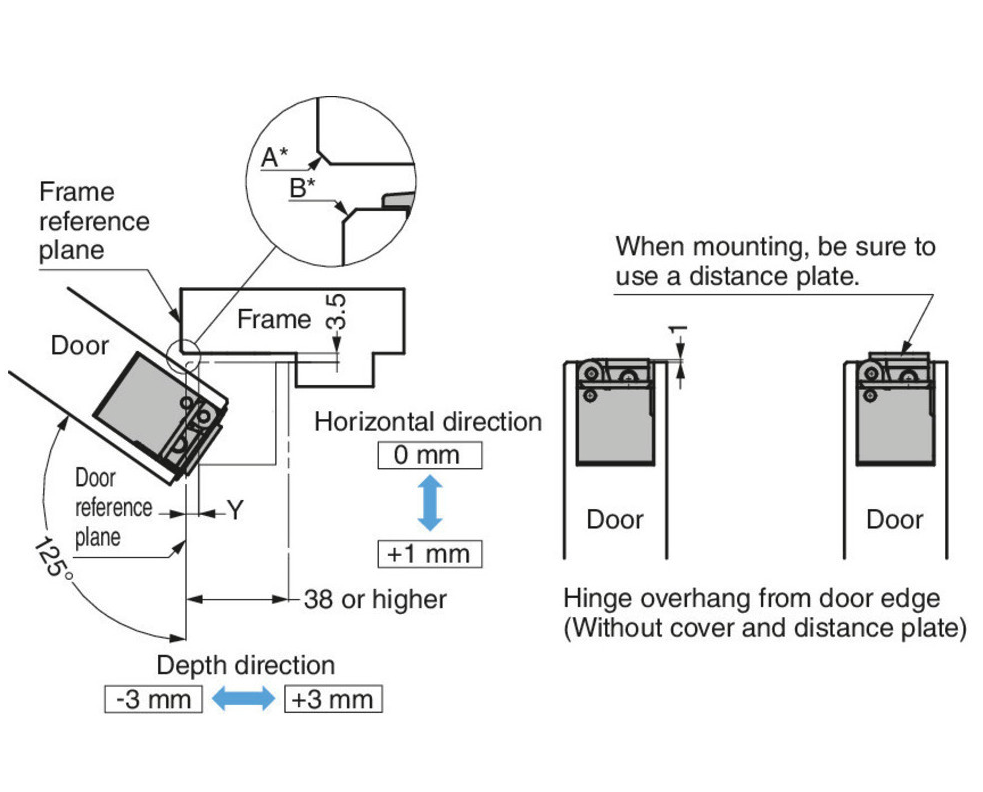

For doors 38mm thick doors the hinge will give 125º opening, adjustment bolts are concealed behind front covers which slip on and off easily.
You may require 2 of 3 hinges, depending on the weight of the door.

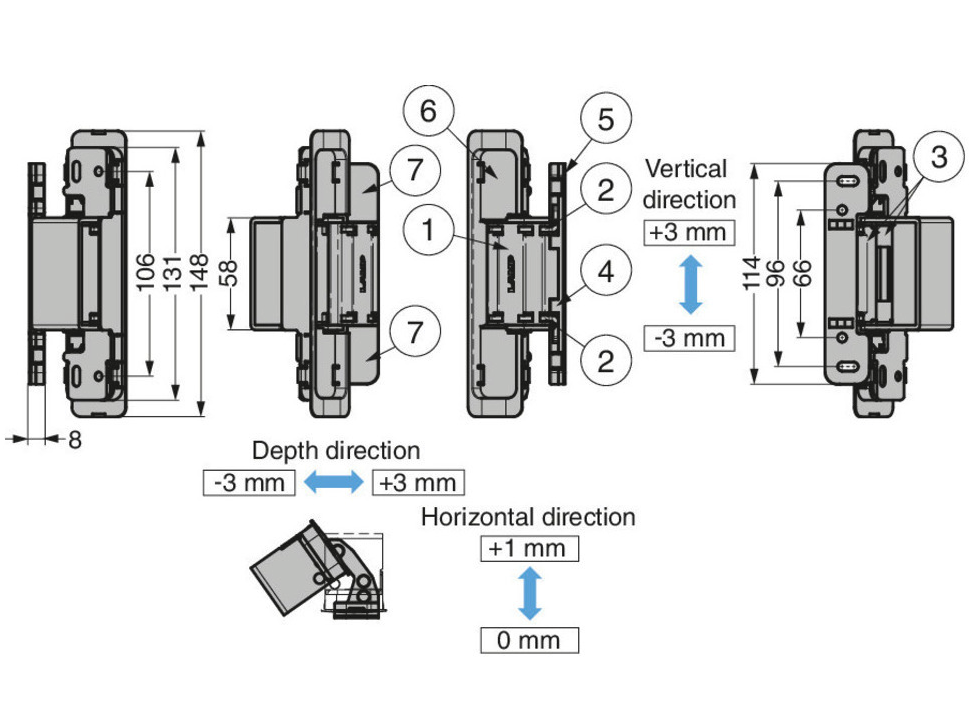

Overall Hinge Height: 148mm
Hinge Thickness: 40mm
Hinge Width: 30mm
Min Door Thickness: 38mm
Maximum door width: 900mm
Maximum door height: 2700mm
Door Weight: 50kg for 2 hinges & 65kg for 3 hinges
Material: Steel

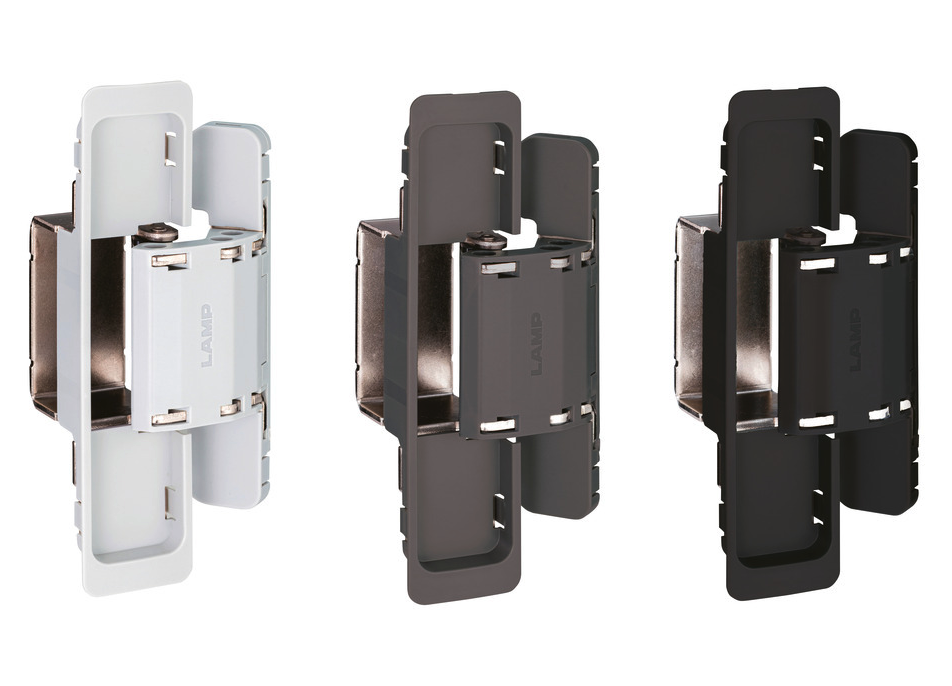

Finish: Black, Dark Grey, Light Grey
Opening Angle: 125 Degrees
Cycle Test: 300,000

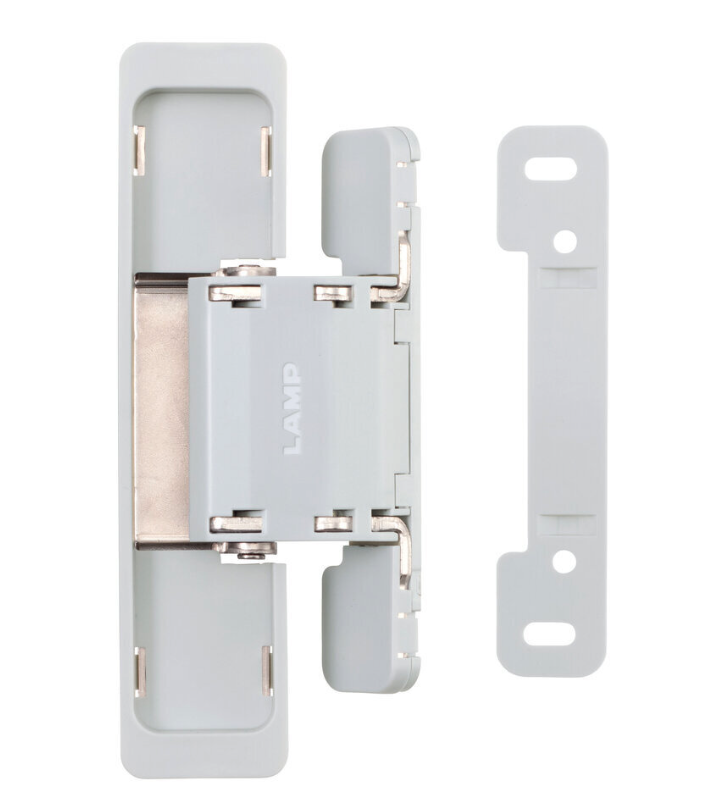

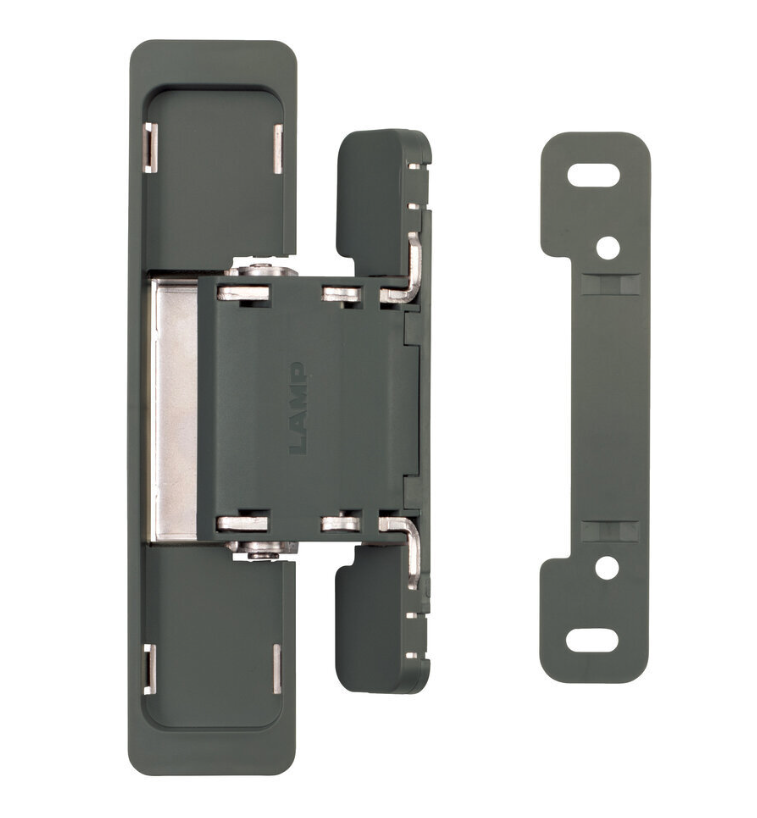

Pack: One Hinge, including Screws and cover plates

Other HES 150 Medium Duty available
Instruction info available to download
