Concealed Surface Mounted Sugatsune HES 150 Door Hinge

Description

Concealed Adjustable Surface Mounted HES 150 Door Hinge

3D Concealed heavy duty door hinge for up to 50kgs.
Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors.
Concealed hinges are installed within the door and frame, providing a clean and minimalist look.
The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware.
Concealed heavy duty hinge for un-rebated flush faced quality timber doors.

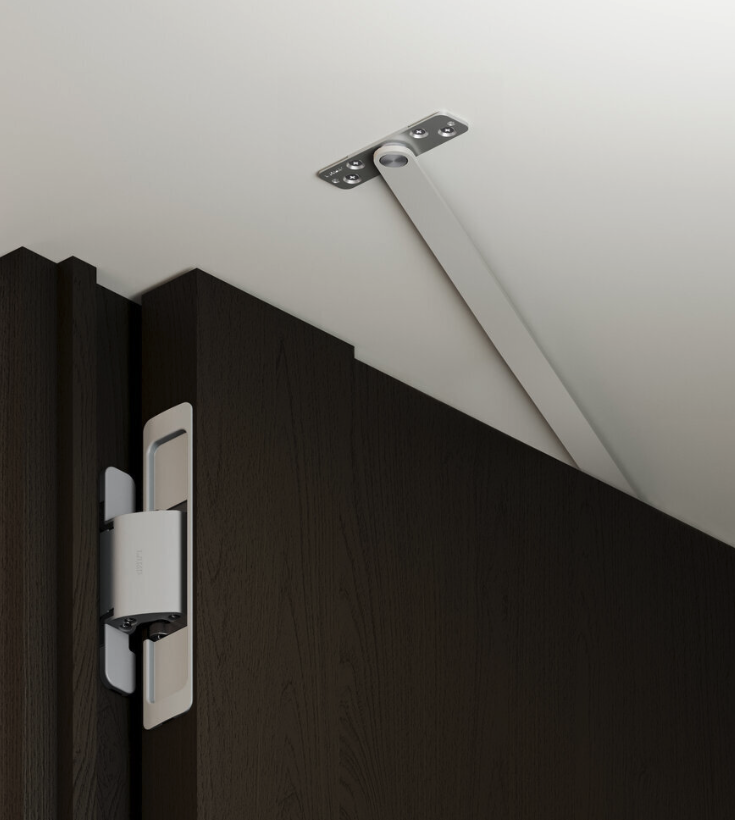

Surface-Mount Concealed Hinge from Sugatsune, designed for easy installation and a sleek, hidden look, perfect for high-end furniture and architectural projects.

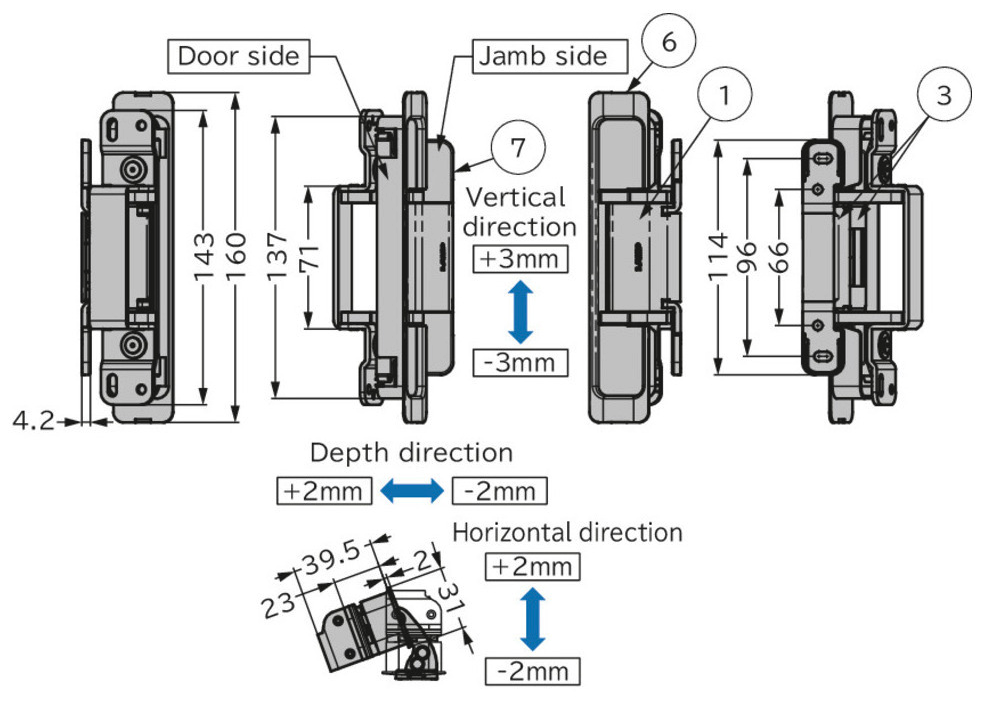

This award-winning hinge offers 3-way adjustment and exceptional durability, having passed a 300,000 open/close cycle test

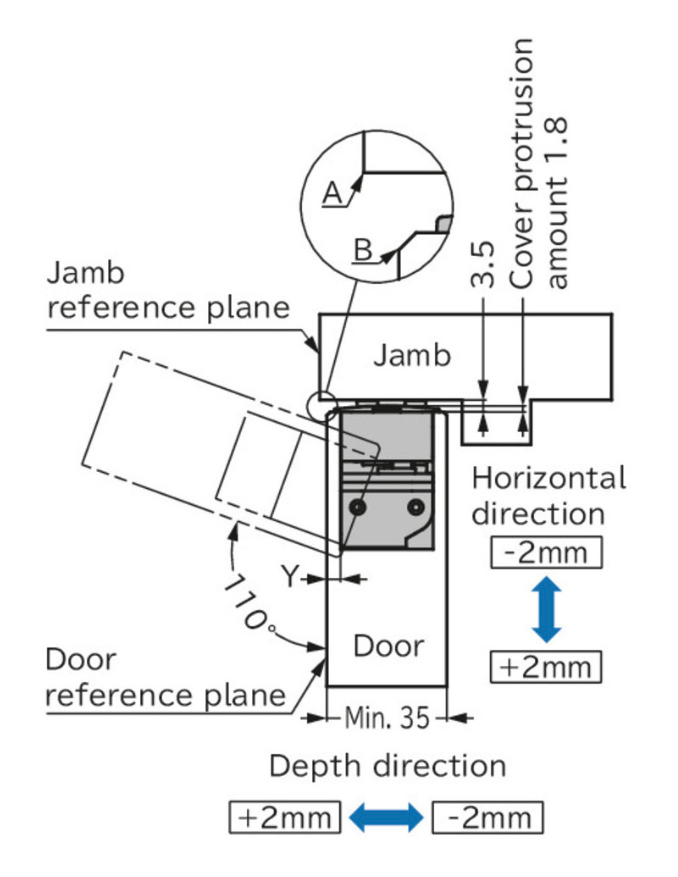

For doors 35mm thick doors the hinge will give 110º opening, adjustment bolts are concealed behind front covers which slip on and off easily.
You may require 2 of 3 hinges, depending on the weight of the door.

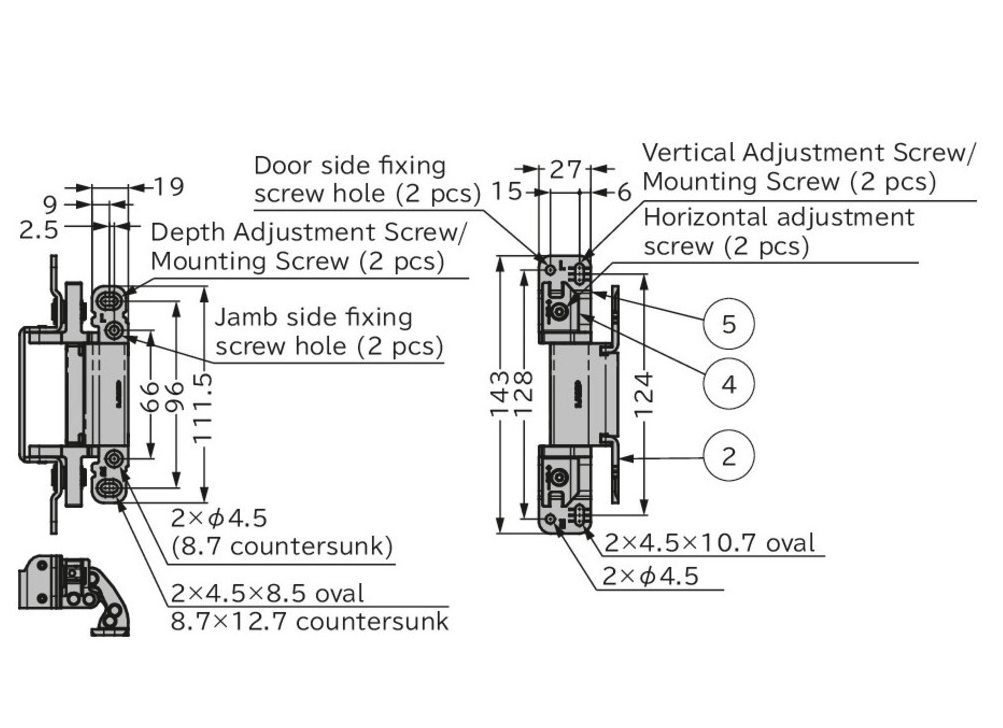

Overall Hinge Height: 160mm
Hinge Thickness: 40mm
Hinge Width: 28mm
Min Door Thickness: 35mm
Maximum door width: 900mm
Maximum door height: 2700mm
Door Weight: 40kg for 2 hinges & 50kg for 3 hinges
Material: Steel

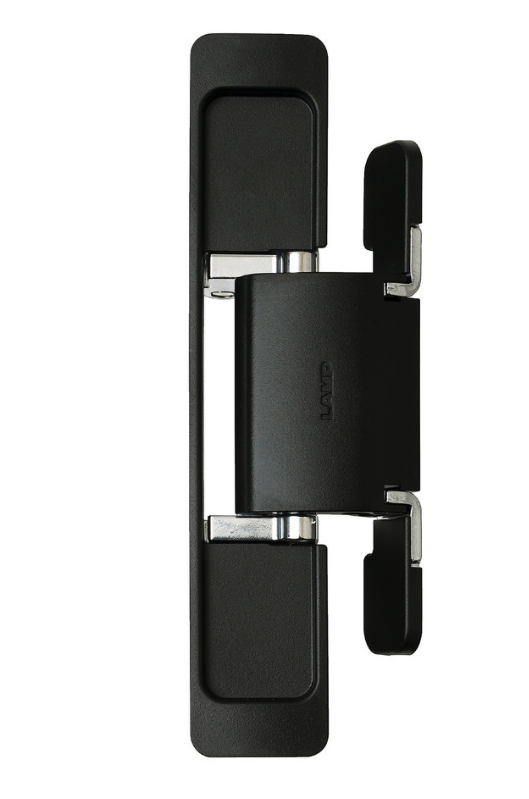

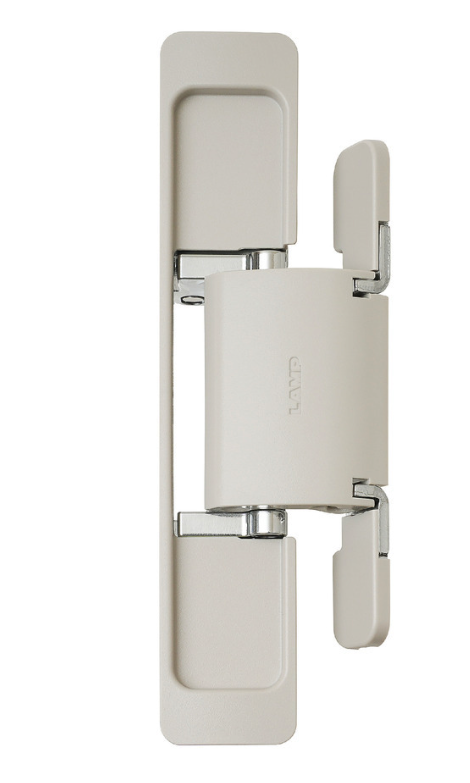

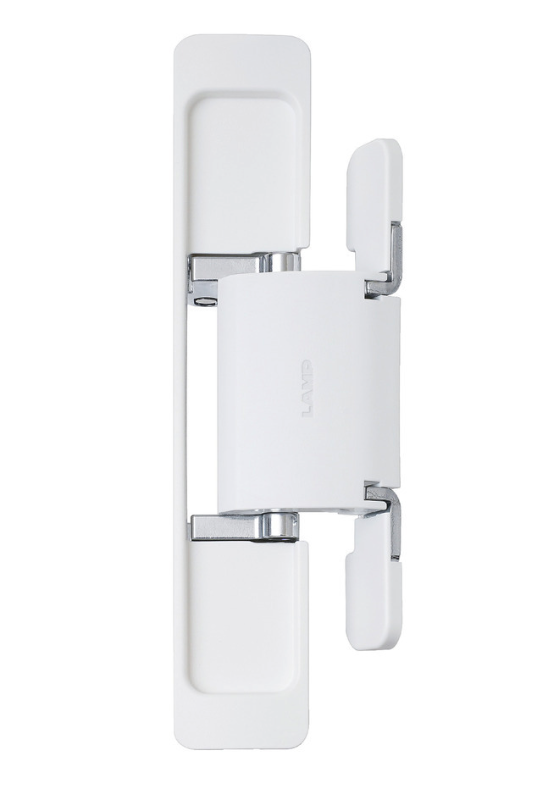

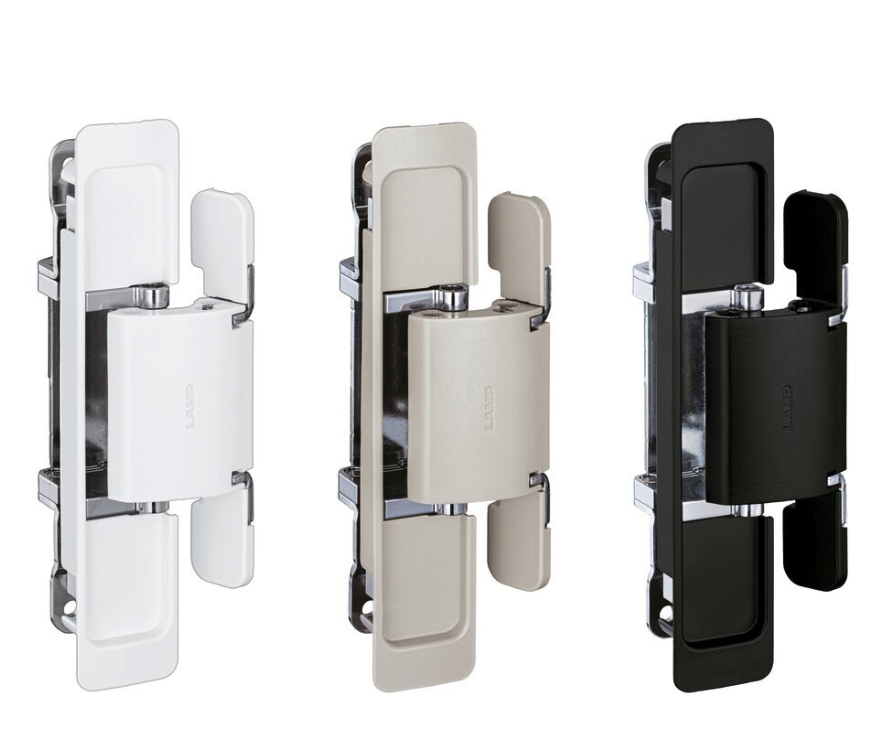

Finish: Black, Warm Grey, White
Opening Angle: 110 Degrees
Cycle Test: 300,000
Pack: One Hinge, including Screws and cover plates

Other HES 140 Heavy Duty available
Instruction info available to download
