Panel Hanger Slim Frame Interlocking Mount

Description

Panel Hanger Slim Frame Interlocking Mount
Panel can be easily attached/detached without tools.

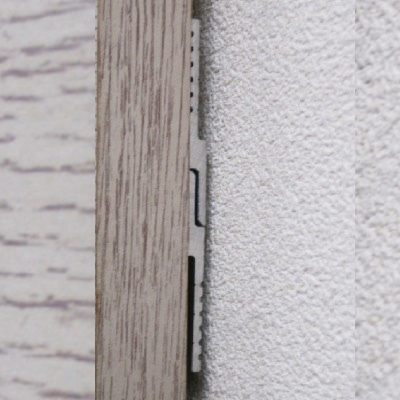

Distance to wall is only 5 mm.
Continuous panels can also be installed easily.
Can prevent warping of large size panels.

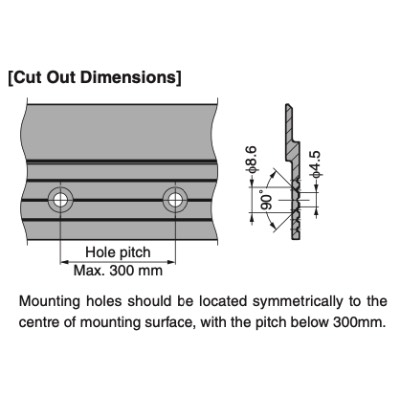

Mounting holes can be set in the groove of screw guide (see drawing).
Applications: Exhibition panels, paintings, furniture, mirrors,
Can be cut to suitable size

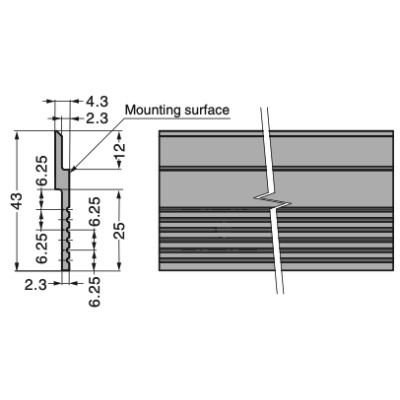

Size: 44x5mm
Length available: 900mm, 1800mm, 2700mm
The load capacity: 30kg
Material: Aluminium
Brand: Sugatsune

Recommended Screws: Countersunk head tapping screw 4-NOT included

Additional information
