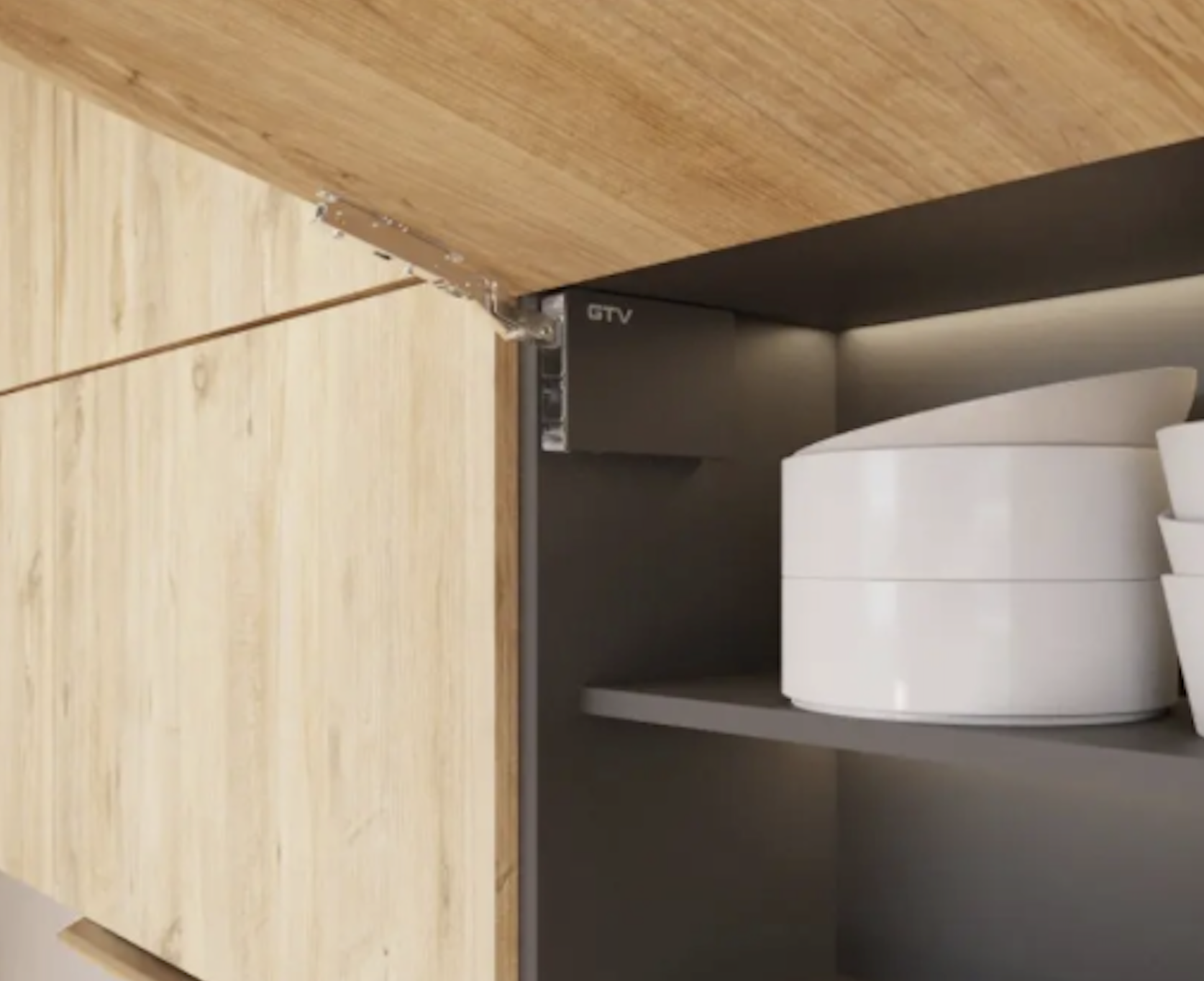

Push to Open Lift Mechanism Stay Cabinet Hinge Set

Description

Push to Open Lift up Stay Cabinet Hinge System Set.

The collection of our lifts has been extended with new stronger models.
Lifts are available in two version, soft close and push to open.
The push to open allows the door to stopped in any position, which allows for gentle and noiseless closing of the front.
It provide smooth movement and cushioning when closing.
The new lift is distinguished by a fashionable, minimalistic design.
The lift can be used in doors with height of 300mm to 650mm
Set Sold in pairs with caps and all fittings.
Available in 4 strengths – low, medium, strong and strong-plus
Power-500-1350, door 300-450mm
Power-1100-2250, door 300-650mm
Power-2000-4050, door 350-650mm
Power-3500-5200, door 400-650mm
To calculate Power Factor: Height in mm x door weight including handles

Colour: Anthracite Grey
Type: Push to Open System
Closing Speed Adjustment and Hovering Adjustment
Door position adjustment and do not require cabinet/door hinges
Set includes:
1x lift mechanism set (pair)
1x grey cover caps set (pair)
1x front fixing-brackets set (pair)
6x screws for wood Ø 4x38mm
4x screws for wood Ø 4x16mm
1x instruction

Soft Close version available
