Blum M31.1000 ECODRILL Hinge Jig Kit

Description

Blum M31.1000 ECODRILL Hinge Jig Kit.

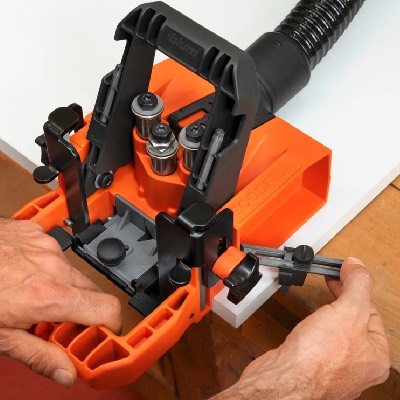

M31.1000 – ECODRILL (NEW) with dust control, the essential tool for precise drilling of cabinet concealed hinges.

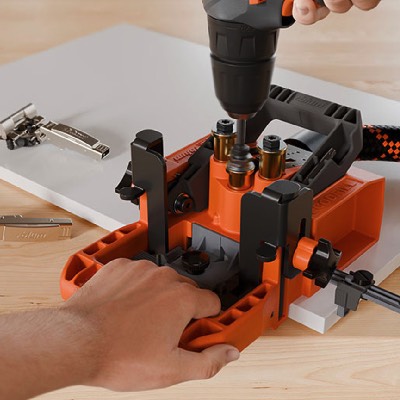

This user-friendly jig ensures accurate marking and drilling of hole patterns on cabinet doors.
It features a quick-release fastener for easy attachment and offers adjustable boss cup depths from 13-15mm.
Ideal for screw-on or both knock-in and INSERTA hinges with its integrated 8mm hole cutters, is your go-to for efficient hinge installation.

Key Features for Perfect Installations:
The adjustable side stops, featuring a measuring scale from 80–130mm, allow easy adjustment to standard distances without constant remeasuring.
One-Hand Drilling Distance Settings:
Adjust the edge distance and hole center with one hand for ultimate convenience. The ECODRILL supports a standard drilling distance from the door edge of 2–8mm and includes the precise 12.5mm hole center required for bi-fold hinges.
Effortless Material Thickness Adjustment:
Spring-assisted self-clamping accommodates material thicknesses from 15 to 40mm, Integrated Template for Mounting plates:
The ECODRILL’s built-in angle template ensures accurate marking of hinge mounting plates and holders for TIP-ON and BLUMOTION pistons.
Efficient Dust Extraction:
An integrated extraction socket, compatible with hoses 32–42mm in diameter, keeps your workspace cleaner by reducing dust exposure.
Designed for vertical drilling, the ECODRILL is suitable for various Blum systems, including:
CLIP top BLUMOTION hinge, CLIP top hinge, MODUL hinge, AVENTOS HF, AVENTOS HK-XS lift systems, and more.
Material: Steel
Size: 250mm x 205mm x 205mm
Requires: Power Drill or Cordless Screwdriver

Included in Pack:
One Blum ECODRILL M31.1000, two 8mm drill bits, a 35mm drill bit, two TORX bits, and a mounting plate template-65.5300.
