Concealed Door Damper Soft-Closing LDD-V Sugatsune

Description

Concealed Door Damper Soft-Closing LDD-V Sugatsune

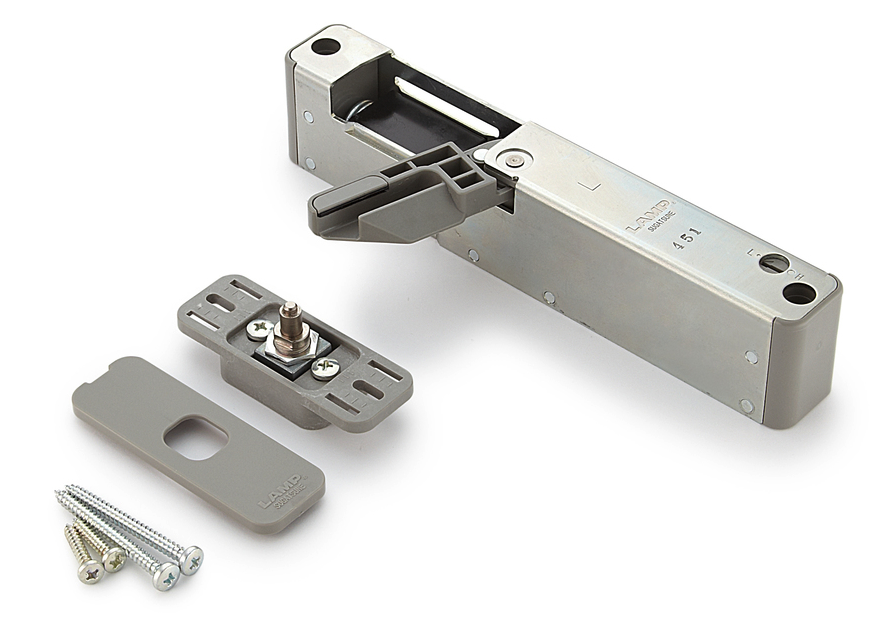

The Sugatsune LDD-V Concealed Door Damper features self-closing and soft-closing capabilities and being flush mounted.
Adjustable closing speed and a concealed design that remains hidden when the door is closed, making it perfect for doors up to 900mm wide and 15-40kg in weight. Adjustable closing speed
Available in: left or right
Door weight capacity: 15-40kg

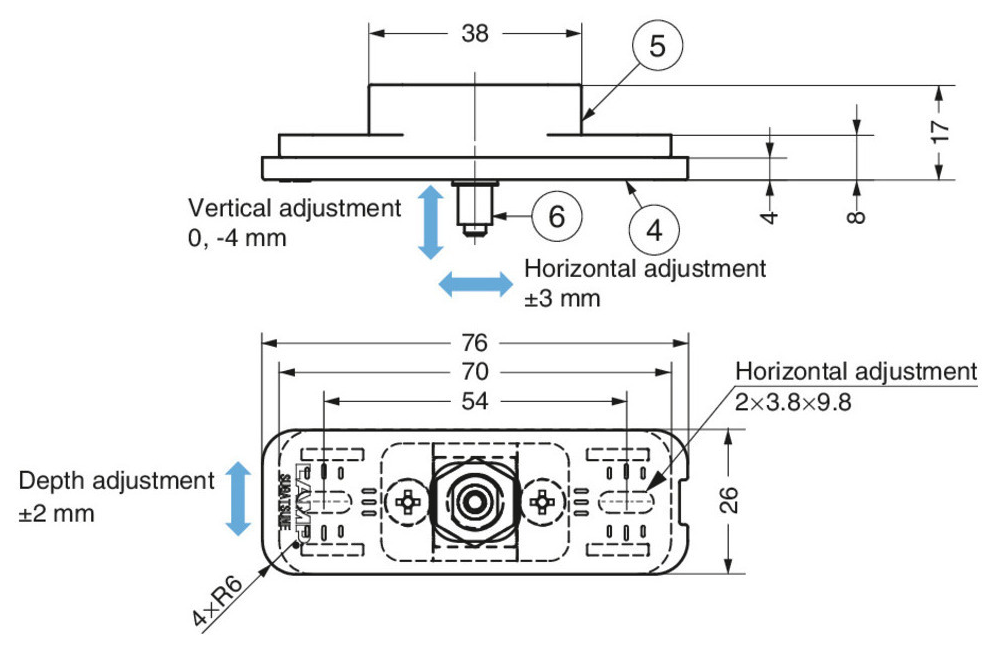

3-way adjustable counter plate

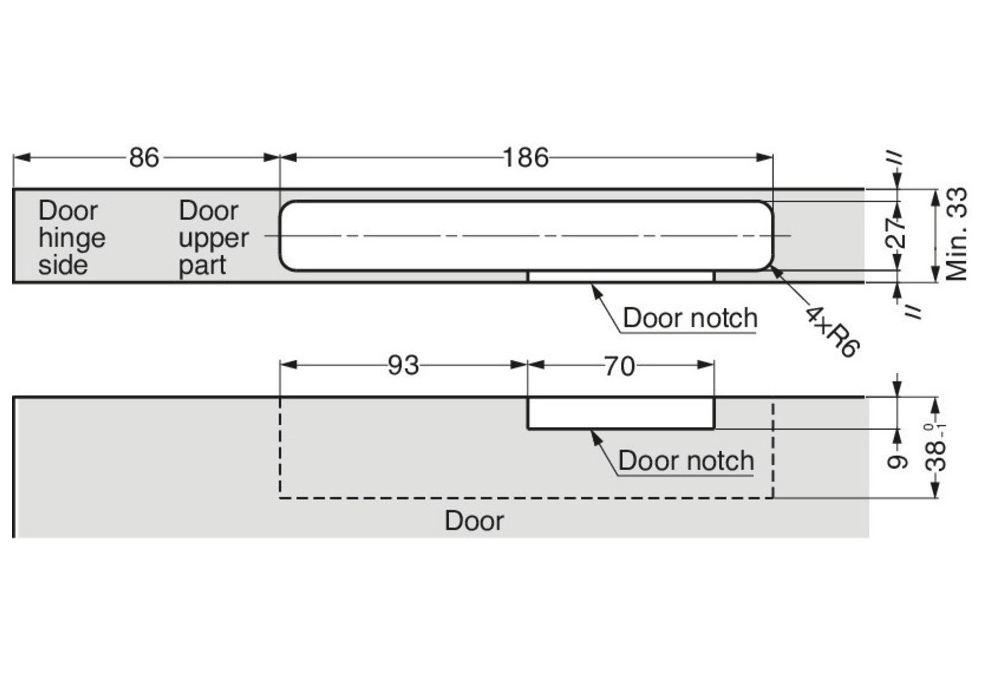

Minimum door thickness: 33mm
Soft-closing to prevent slamming
Passed 100,000 open/close cycles
Suitable for doors up to 900mm wide

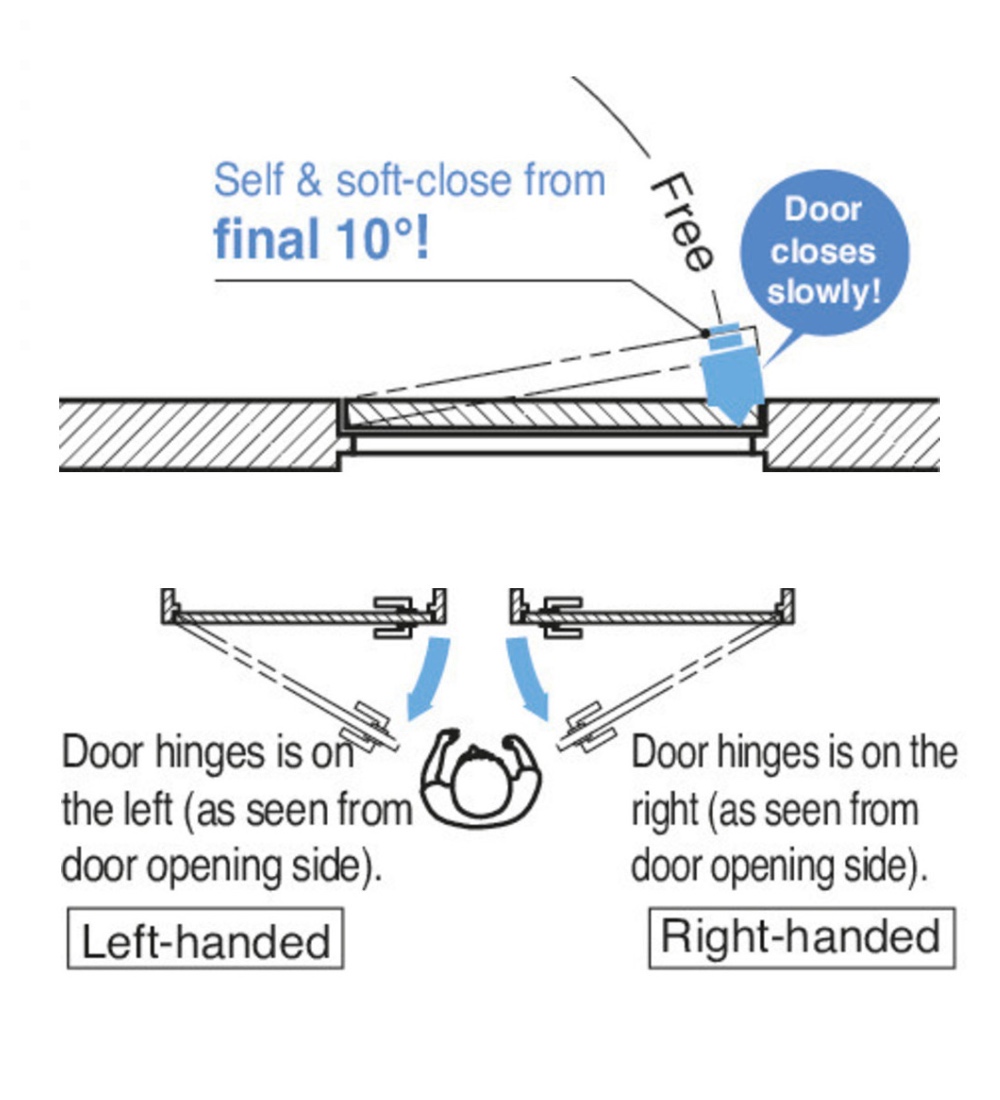

Self and soft closing within 10° radius
Recommended hinge: HES3D series
