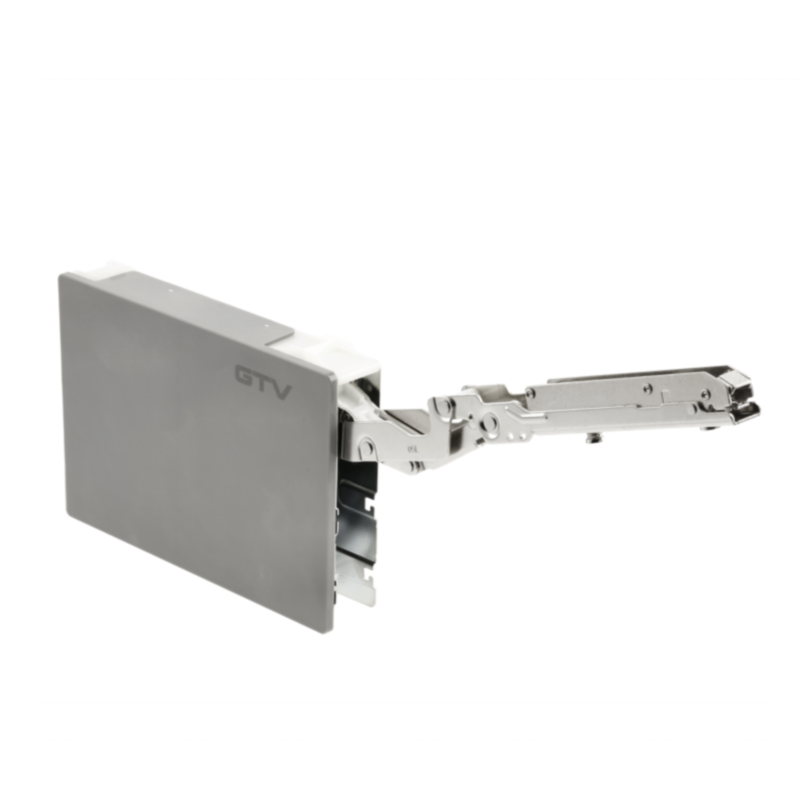

Soft Close Lift Mechanism Stay Cabinet Hinge Set Anthracite

Description

Soft Close Lift Mechanism Stay Cabinet Hinge Set Anthracite

The collection of our lifts has been extended with new, stronger models.
Lifts are available in two versions: soft close and push to open.
The soft close version has a soft closing system, which allows for gentle and noiseless closing of the front.
It provides smooth movement and cushioning when closing.
The new lift is distinguished by a fashionable, minimalistic design.
The lift can be used in doors with a height of 300mm to 650mm
Available in 4 strengths – low, medium, strong and strong-plus
LIGHT-Power-500-1350, door 250-400
MEDIUM-Power-1100-2250, door 250-500
STRONG-Power-2000-4050, door 250-500
STRONG-PLUS-Power-3500-5200, door 600
To calculate Power Factor: Height in mm x door weight, including handles in kg

Colour: Antracite
Type: Soft Close System
Closing Speed Adjustment and Hovering Adjustment
Door position adjustment and do not require cabinet/door hinges

Set Sold in pairs with caps and all fittings.
Set includes:
1x lift mechanism set (pair)
1x grey cover caps set (pair)
1x front fixing-brackets set (pair)
6x screws for wood Ø 4x38mm
4x screws for wood Ø 4x16mm

Push to Open available
The last photo shows the lift with the new cover caps
Video Intro to lifts
