Soft Close Lift Mechanism Stay Cabinet Hinge Set White

Description

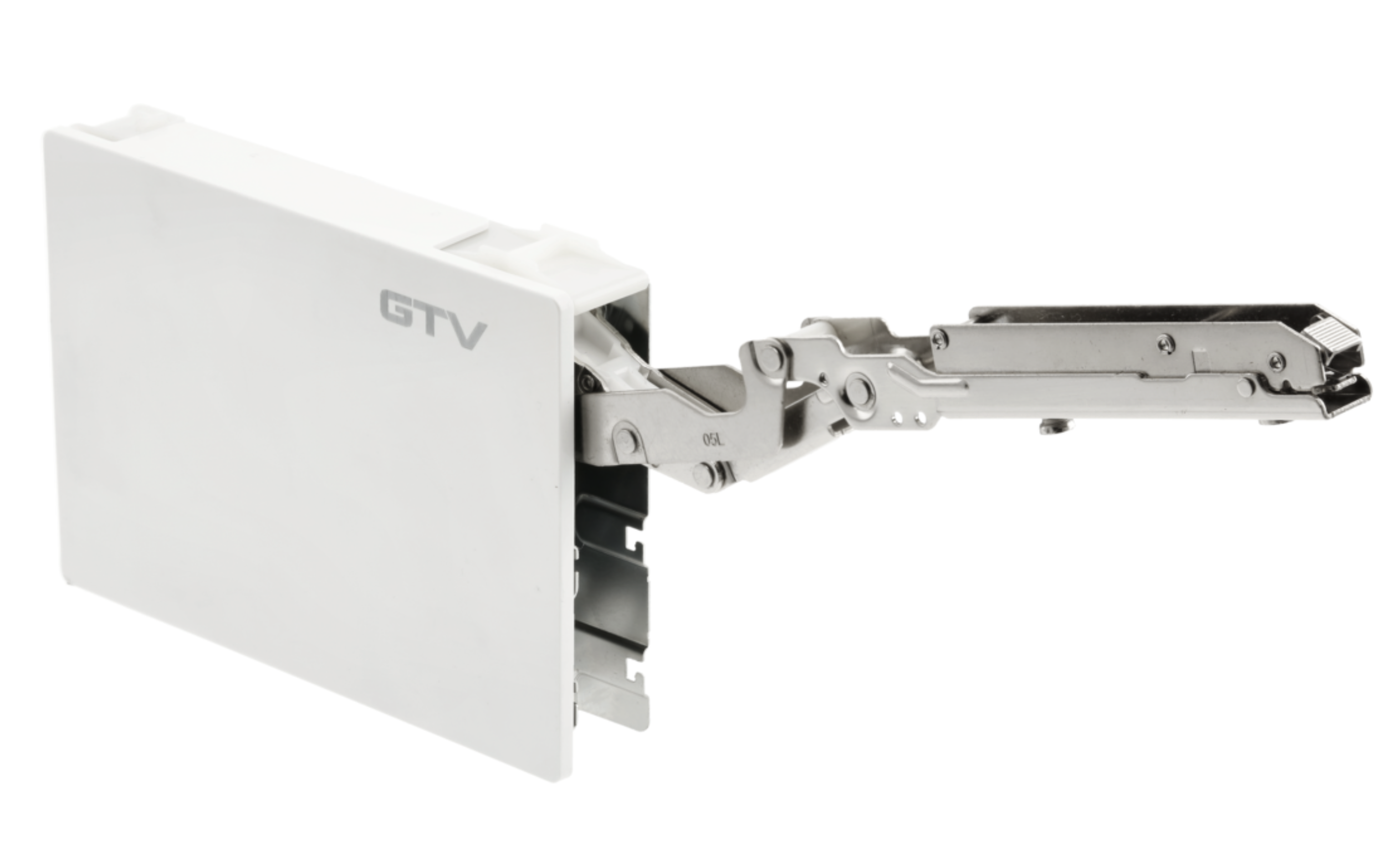

GTV Soft Close Lift Mechanism Stay Cabinet Hinge Set White

The collection of our lifts has been extended with new, stronger models.
Lifts are available in two versions: soft close and push to open.
The soft close version with a soft closing system, which allows for gentle and noiseless closing of the front.
It provides smooth movement and cushioning when closing.
The new lift is distinguished by a fashionable, minimalistic design.

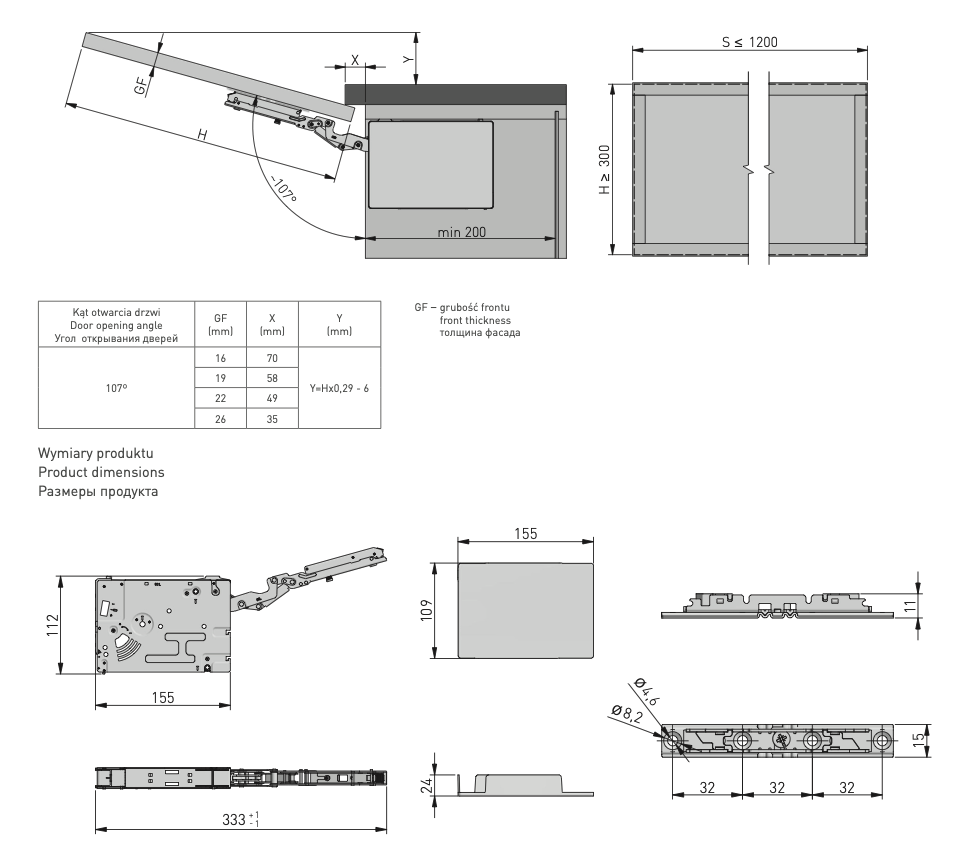

The lift can be used in doors with a height of 300mm to 650mm
Set Sold in pairs with caps and all fittings.
Available in 4 strengths – low, medium, strong and strong-plus
LIGHT-Power-500-1350, door 250-400
MEDIUM-Power-1100-2250, door 250-500
STRONG-Power-2000-4050, door 250-500
STRONG-PLUS-Power-3500-5200, door 600
To calculate Power Factor: Height in mm x door weight, including handles

Colour: White
Type: Soft Close System
Closing Speed Adjustment and Hovering Adjustment
Door position adjustment and do not require cabinet/door hinges
Set includes:
1x lift mechanism set (pair)
1x white cover caps set (pair)
1x front fixing-brackets set (pair)
6x screws for wood Ø 4x38mm
4x screws for wood Ø 4x16mm
